Specifications

Mechanical specifications:

Housing:

Mounting system:

Power connection:

Signal connection:

Zoom angle:

Control systems:

Control protocols:

RDM:

Channel modes:

Display:

Nynon plastic

2 quick-release clamp mounts

Input Seetronics SAC3MPA panel mount

Output Seetronics SAC3MPB panel mount

Cable Seetronics SAC3FCA plug to NEMA 5/15

3- and 5-pin XLR in and out (IP rated)

4° to 36° electronic zoom

DMX512

Yes, address, channel mode, pan invert, tilt invert, pan and tilt swap

2 modes of operation

Mode 1: 27 channel mode

Mode 2: 103 channel mode

Digital

Electrical specifications:

Light source:

Color temperature:

CRI (warm white):

Lumen output:

Power supply:

Power consumption:

Dimensions:

Fixture size:

Fixture weight:

Packaged size:

Packaged weight:

7 x 60 W RGBW OSRAM 62 x .5 W RGB

7562 K

72 @ full

7625 lm

Electronic 90-250 V AC, 50/60 Hz

382 Watts | 3.25 Amps | @110 V

15" x 9.37" x 19.37"

(38.1 cm x 23.79 cm x 49.19 cm)

32 lb (14.51 kg)

16.5" x 13.5" x 24.5"

(41.91 cm x 34.29 cm x 62.23 cm)

35.25 lb (15.98 kg)

Moving lights

This is the space to introduce the Services section. Briefly describe the types of services offered and highlight any special benefits or features. Encourage site visitors to learn more by exploring the full list of services offered.

M-Sphere

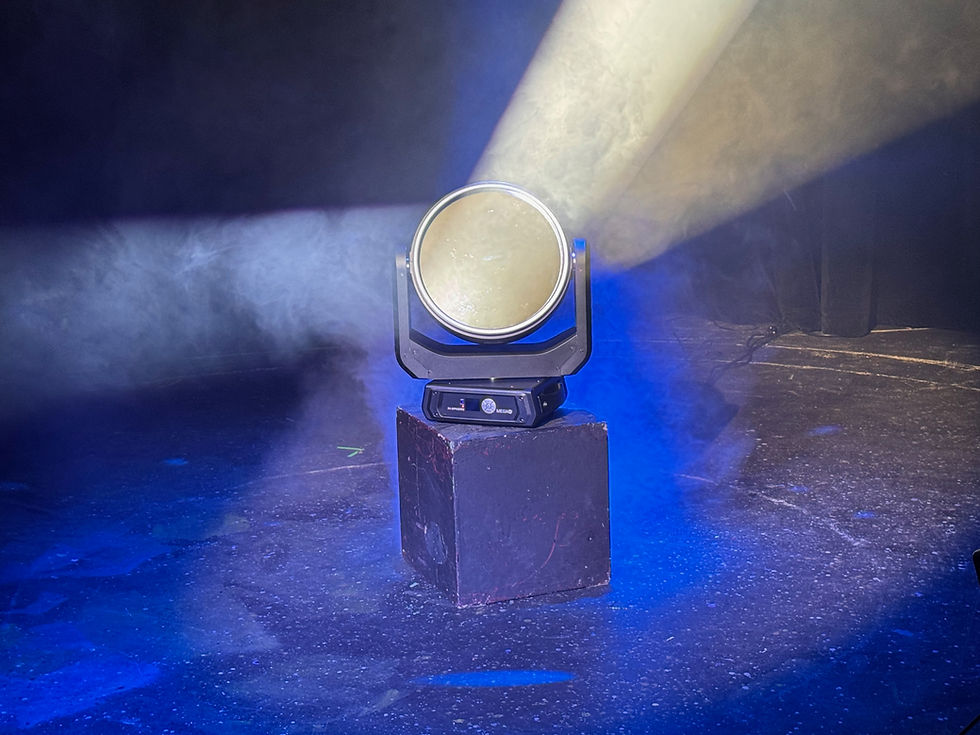

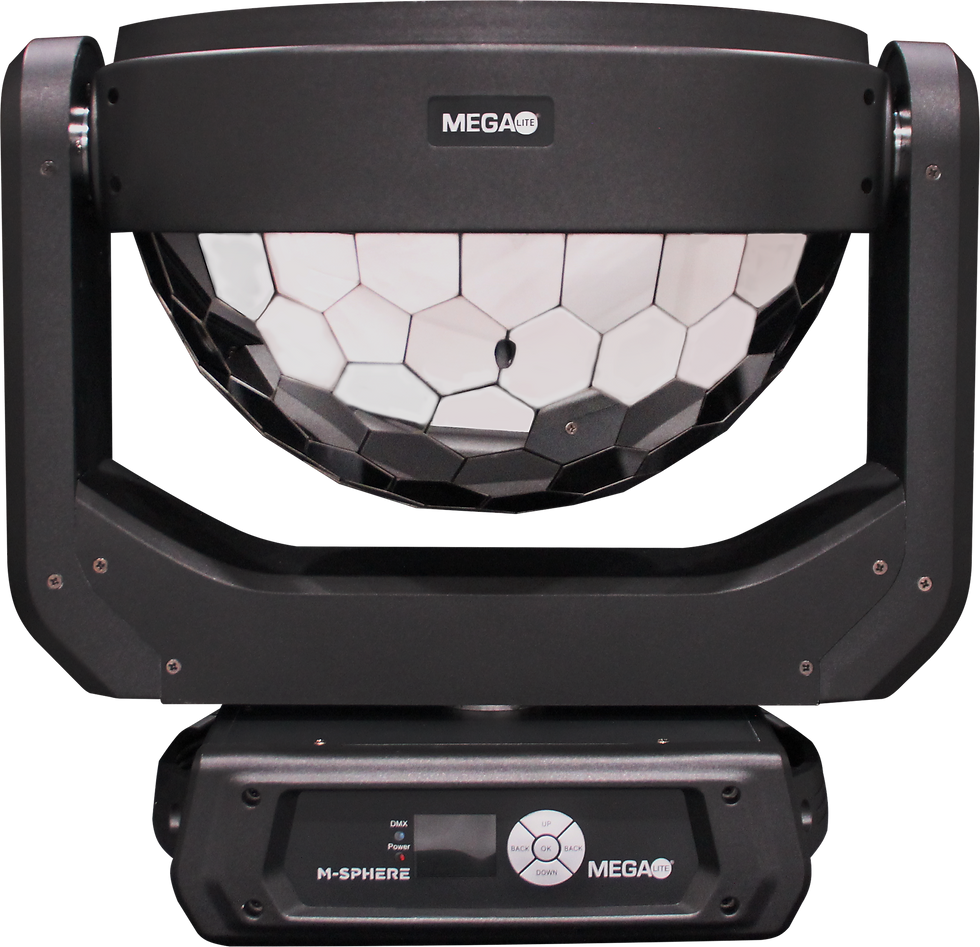

The M-sphere: our advanced moving head mirror fixture, featuring a flat beam reflecting mirror on one side and a rotating half mirror ball on the other.

More

Frostbot

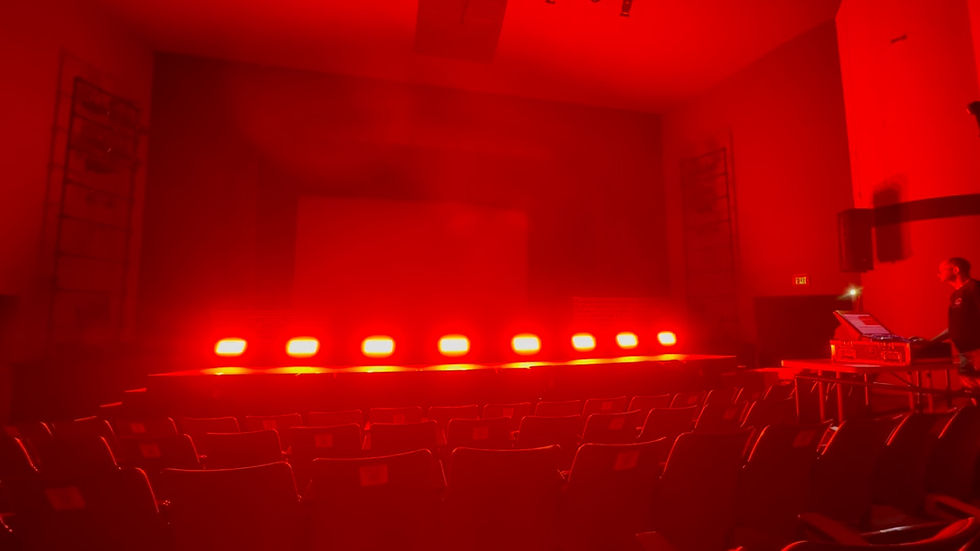

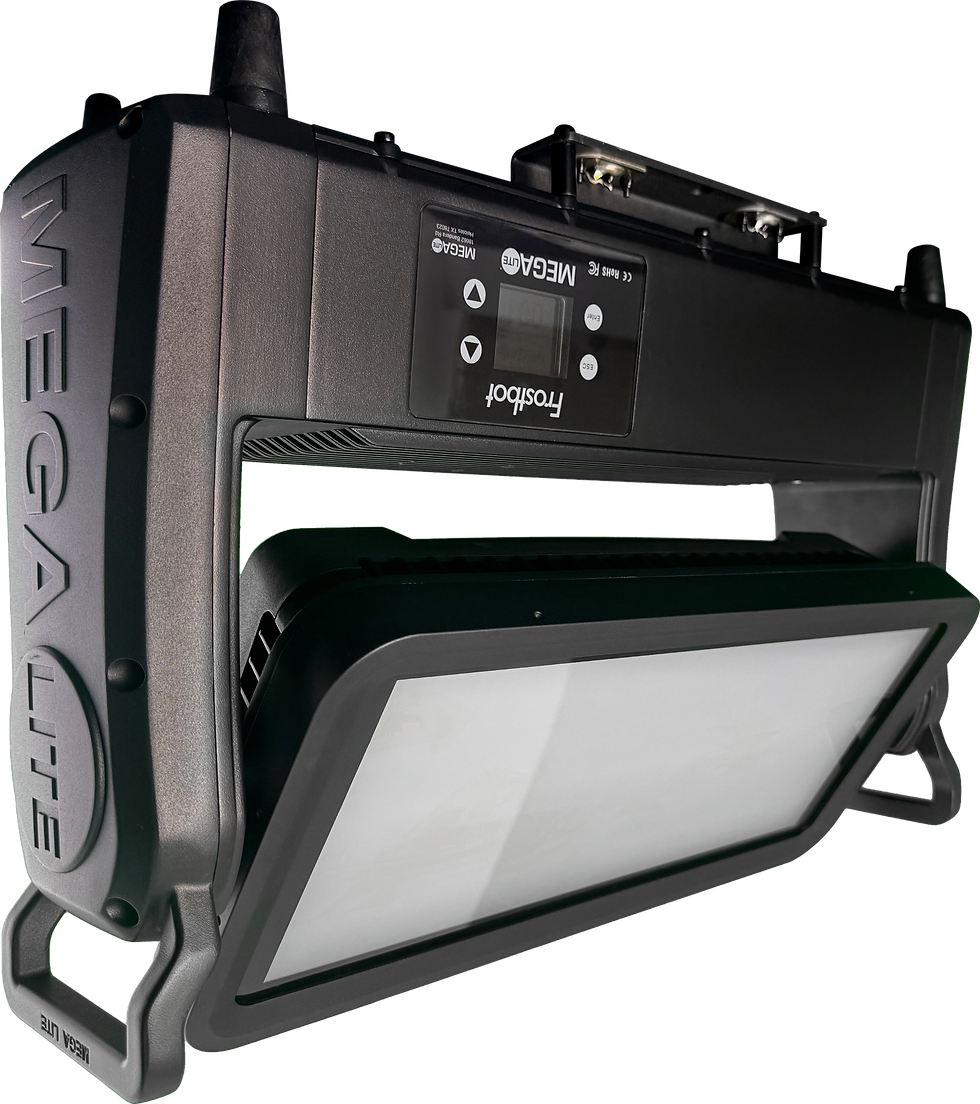

The Frostbot is a high-output, motorized fixture that features a 220° tilt and combines wash, strobe, and eye-candy effects, all while being IP-rated for enhanced durability.

More

MW1

The MW1 is part of the M-Series. This compact unit is equipped with seven 40 W RGBW OSRAM LEDs that can be individually controlled for easy pixel control.

More

EW1

The EW1 Luminaire, a versatile tool for you lighting needs, is equipped with 7 x 60 Watts RGBW LEDs, each with individual control and a kaleidoscopic effect.

More

Lupa-7

The Lupa-7 is equipped with two different light sources. One grouping of seven 60W LEDs creates a powerful beam or wash effect.

More

Spotbot LED CYM 300

The Spotbot LED CMY 300 is a versatile, affordable, full-featured, and all-purpose spot fixture.

More

MS1

The MS1 is part of the M series. This compact unit is equipped with a bright 150 Watts LED.

More

MB1

The MB1 is part of the M series. It is a moving head with a powerful beam. Housing an 80W LED, this compact unit has the ability to project a strong output and long range.

More

EB1

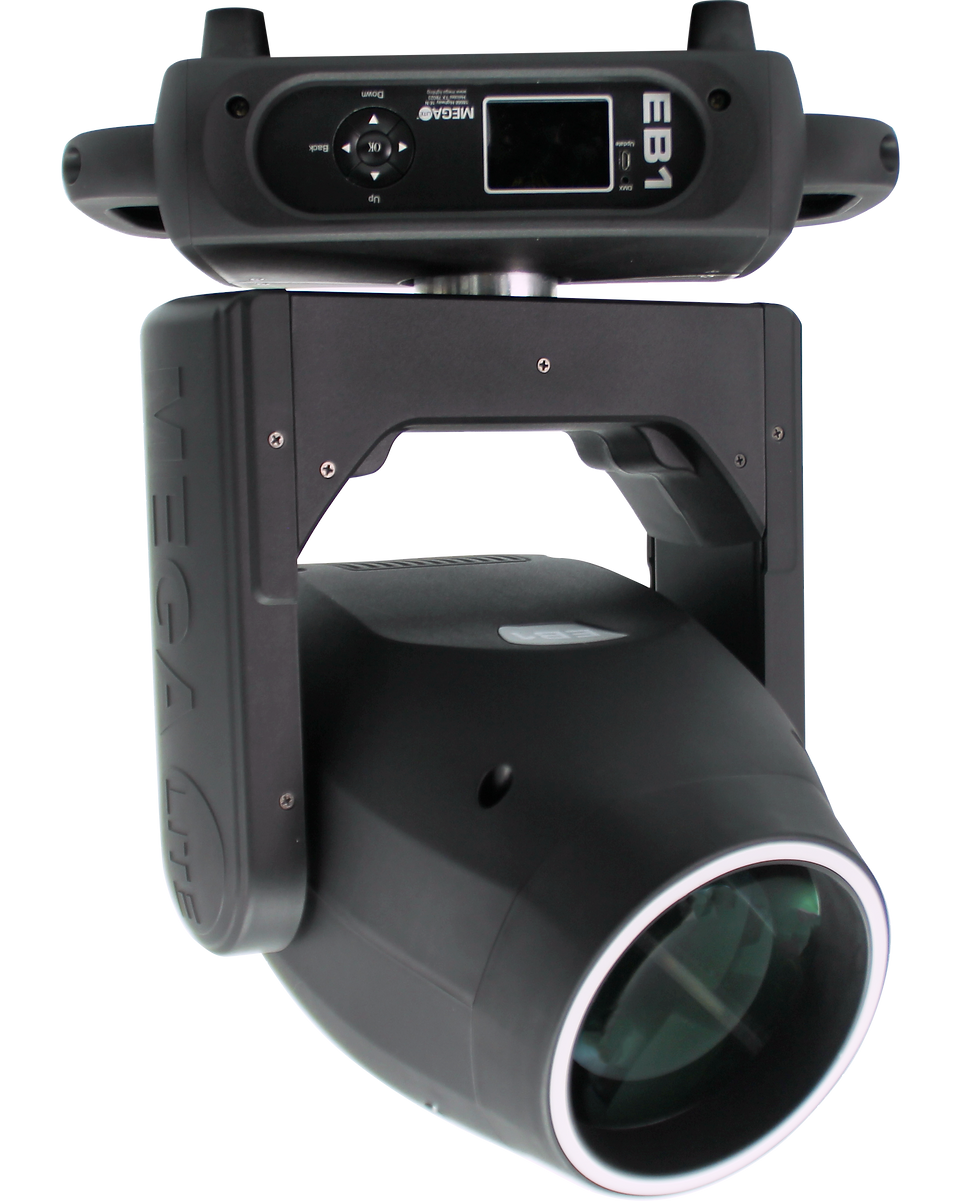

The EB1 is powered by a 200 W LED. It offers a large aperture and 14 bi-directional colors + open, which can produce bright colorful beam combinations.

Toad Hybrid 400LED ISO_edited_edited.png

Toad Hybrid LED 400

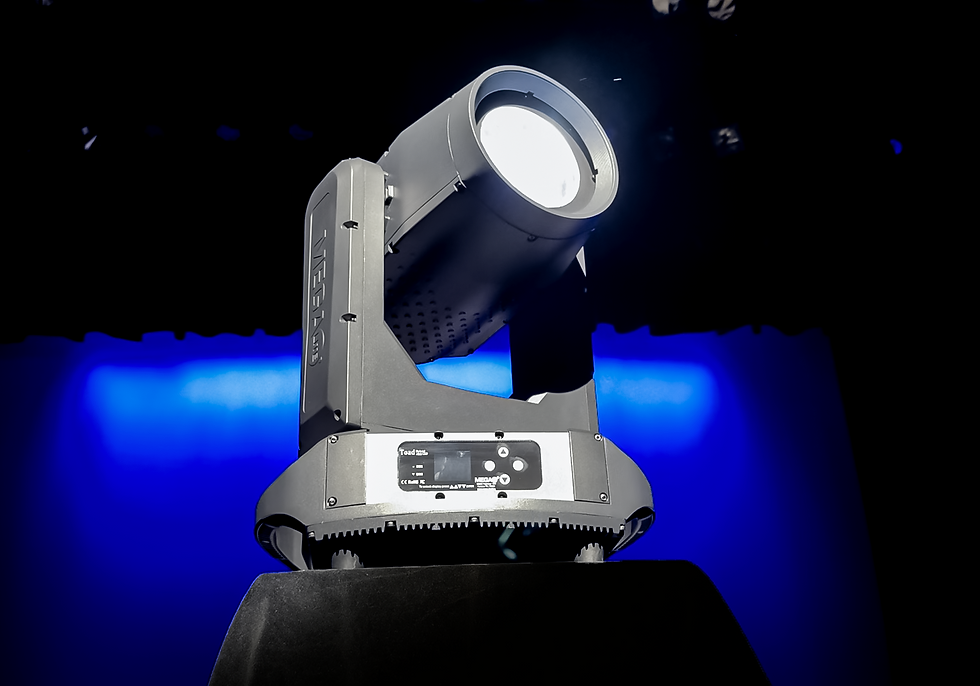

The Toad Hybrid 400 uses a powerful 400W LED with a Correlated Color Temperature of 8533K, which is very blue and great for aerial effects.
