Description

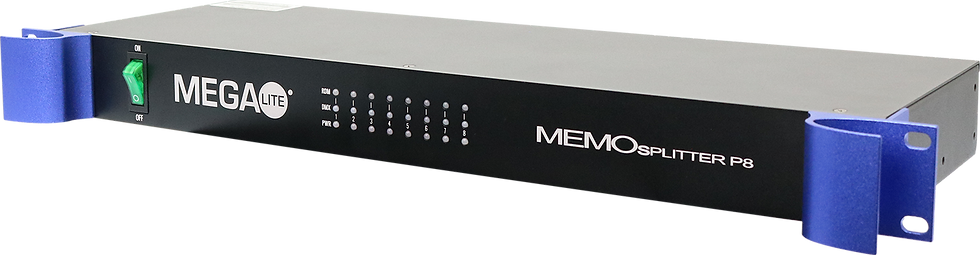

The MEMO Splitter P8 is designed for production applications and is the ultimate DMX signal amplifier, distributor, and supports bidirectional RDM signal. This powerful device empowers lighting professionals to split a single universe signal into eight separate outputs while boosting its signal strenght, ensuring communication between controllers and DMX lighting fixtures.

Perfect for stage production applications and more, the MEMO Splitter P8 empowers you to achieve intricate lighting arrangements with ease.

Improve signal integrity, and take full advantage of RDM features for greater control over your lighting fixtures. Upgrade your lighting setups today and experience unparalleled control with the Memo Splitter P8.

Features

Memo Splitter P8_02.png

This versatile device features one input and a remarkable eight outputs, allowing you to effortlessly split and boost you DMX signal for extensive cable runs between DMX lighting fixtures.

8 OUTPUTS

Memo Splitter P8_01.png

Benefit from the added advantage of Remote Device Management (RDM) signal regeneration. The MEMO Splitter P8 restores and stabilizes RDM signals, allowing you to maintain constant control and monitoring of your DMX lighting fixtures.

RDM

Benefit from enhanced reliability with electronic isolation between DMX connections. This feature protects your equipment from potential electrical interference and ensures smooth signal distribution.

ISOLATION

Memo Splitter P8_03.png
fondo video.png

Video

Specifications

Mechanical Specifications:

Input DMX connections:​

Output DMX

connectors:

Power connection:

Power consumption:

Max operating

temperature:

Fastening system:

Control Systems:

RDM:

DMX-512:

Universes:

Rear 5 Pin XLR Connectors

In & Out



8 Outputs 5 Pin XLR

Connectors.

PowerCon Type (Power Con to

Nema 5-15 cable included).

0.6 Amps @ 110V 60Hz



148 °F

1U Rack mountable front or back

& wall mountable

Yes

Yes

One (1)

Electrical Specifications:

Outputs:

Output isolation:

RDM signal:

Signal lines:

Signal indicators:

Compliant:

Power input:

Dimensions:

Fixture Size:

Fixture Weight:

Packaged Size:

Packaged Weight:

Eight (8)

Opto Isolated (Each)

Boost, repeat cleans and

regenerates RDM signal

Prevents reflection

Power, DMX, RDM

RDM E 1.20

90-120-AC 60Hz.

19" x 7.25" x 1.75"

6 lbs.

21.6" x 9.5" x 3"

7 lbs.
