Features
The device features four RJ45 outputs ports, designed to efficiently transmit control signals to the Deco Line lighting fixtures ensuring seamless integration and reliable performance in professional lighting setups.
FOUR RJ45 OUTPUTS
Using this function allows you to wirelessly control your DMX connected fixtures using a wireless DMX Connection.
IP65:
WIRELESS DMX:

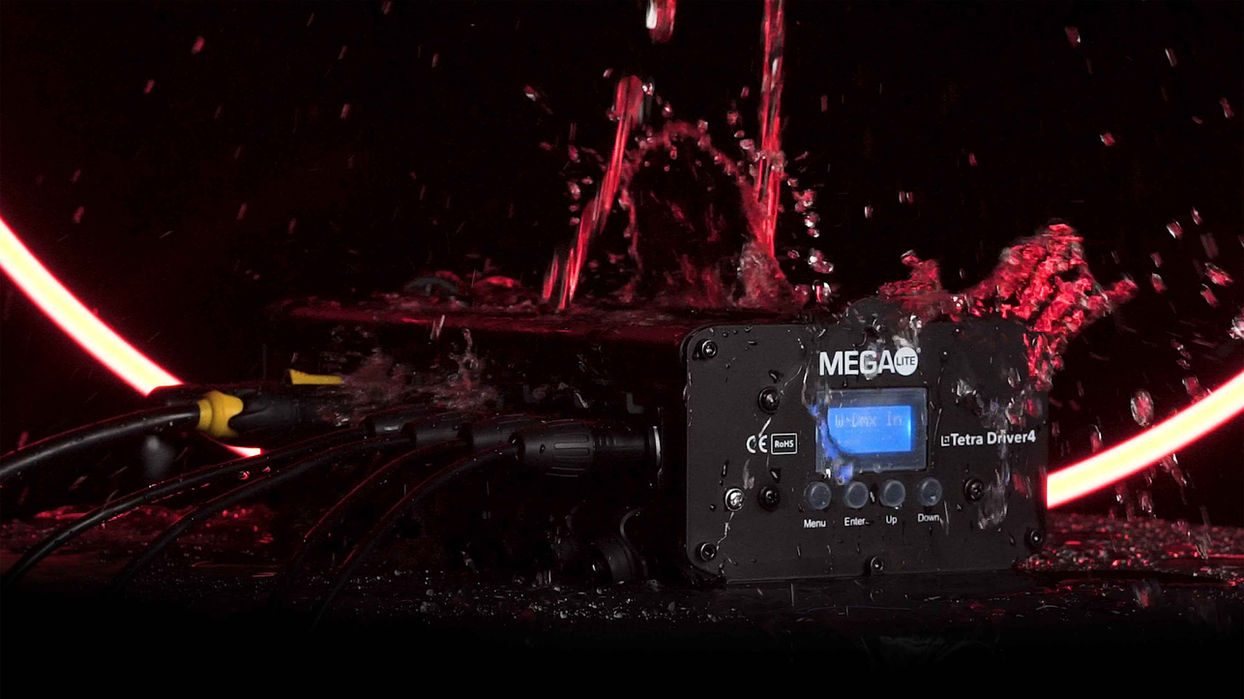

Resistant to water and protected from dust, this unit is perfect for outdoor venues and events.
Description
Designed to seamlessly control our Light Pipe and Deco Line units, this all-in-one solution has 4 outputs that can be individually addressed with in your preferred channel mode.
To further enhance versatility, this powerful driver features multiple mounting points, allowing for easy wall mounting and clamp mounting.
For easy production and installation implemetation.
Deco Line brings smart technology to any space — effortlessly. Featuring intuitive lighting controllers and low-voltage LED fixtures, this system is designed for easy integration in homes, hotels, and commercial environments.
The power of DMX, CABLE-FREE
Gallery
Video
Specifications
Mechanical specifications:
IP Rating:
Housing:
Power connection:
Signal connection:
Wireless DMX connection:
Output connection:
Cooling:
Fastening system:
Display:
Control & programming
Control protocols:
Channel modes:
Operating mode:
IP65
Aluminum extrusion
Seetronics SAC3FX IP-rated
connection (Nema 5-15 cable included)
5-Pin XLR In and Out
Lumen Radio wireless DMX connection receiver
4 X RJ45 Outputs
Internal fan
M10 Clamp mount thread, mounting holes accessory DIN rail mounts
Digital
DMX 512
5 Modes of operation:
Mode 1: 1 Channel mode Dimmer
Mode 2: 3 Channel mode Warm, white, cool white
Mode 3: 3 Channel mode R,G,B
Mode 4: 4 Channel mode R,G,B, W
Mode 5: 7 Channel mode Dimmer, R,G,B, W, strobe, Macro
17 Pre programs manual settings via display
Electrical specifications:
Output ports:
Power per port:
Refresh:
Drive Method:
Power consumption:
Power supply:
Power input:
Output;
Dimensions:
Fixture Size:
Fixture Weight:
Packaged size:
Packaged weight:
4 Ports:
96W
4,000Hz
Constant voltage
3.29 Amps / 384 Watts
Electronic: Mean Well UHP-500-24
90-264V AC 50/60Hz
24V DC
13.25" X 9.5" X 4.12"
(33.65 cm X 24.13 cm X 10.46 cm)
8.8 lbs (3.9 kg)
14.75” X 12” X 6.75”
(37.46 cm X 30.48 cm X 17.14 cm)
9.8 lbs (4.4 kg)
