Features
Featuring red, green, blue, and warm white color mixing, it can create numerous color combinations.
COLORFUL

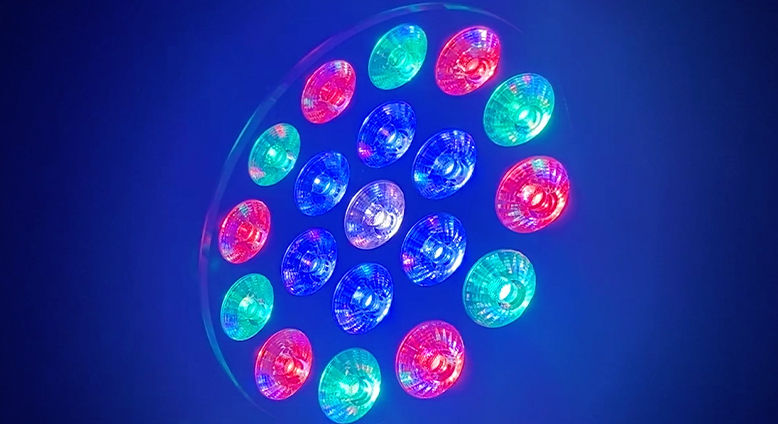

This unit features a total of nineteen 10 W, R, G, B, WW LEDs that can be used to create individual or grouped effects.
segment control
nineteen leds
The 4 segments of control allow users to create different individual of grouped effects, incluiding individual control of the center, second circle and two outer circle groups, creating eye-catching patterns.
Gallery
Video
Specifications
Mechanical specifications:
Housing:
Power connection:
Signal connection:
LED angle:
Fastening system:
Control systems:
Control protocols:
RDM:
Channel modes:
Pantalla:
Aluminunm
Power CON-type in and out
5-pin XLR in and out physical
25°
Mounting yoke with kickstand
DMX 512, standalone 225 step dimmer setting via display
Yes
4 modes of operation
Mode 1: 4 channel mode
Mode 2: 6 channel mode
Mode 3: 8 channel mode
Mode 4: 16 channel mode
LED
Electrical specifications:
Light source:
Color temperature:
CRI (warm white):
Segments:
Power supply:
Power consumption:
Max power link:
Dimensions:
Fixture size:
Fixture weight:
Packaged size:
Packaged weight:
19 x 10 W RGBWW LEDs
2,958 K
75
4
110 - 240 V AC, 50/60 Hz
155 Watts | 2.06 Amps
7 units @ 110 V | 14 @ 220 V
11.12" x 9" x 9.87"
(28.24 x 22.86 x 25.06 cm)
6.5 lb (2.9 kg)
11.5" x 11.5" x 12"
(11.5 x 11.5 x 30.48 cm)
8 lb (3.6 kg)
