Description
The EB1 is powered by a 200 W LED. It offers a large aperture and 14 bi-directional colors + open, which can produce bright colorful beam combinations.
The 1° angle creates eye-catching beams, ideal for medium to large applications. In addition, the EB1 has a pixelable ring with 48 SMD LEDs grouped into 16 RGB pixels of control that add a unique matrix effect. The pixels can be mapped, or you can select from pre-created macros and speeds depending on your ficture profile.
With a compact and light weight desing, the EB1 offers multiple features that allow lighting designers to expand their creativity. It includes 12 fixed + open static gobos and an 8-facet indexing prism that further enhances the beam and gobo effects. It also offers a 0.3-20 per second strobe, one frost filter, and linear focus to create a soft or sharp projection.
The EB1 is a pixable wash beam that is part of the E series.
Features
The EB1 features a 5 1/2" aperture, allowing for a large beam 1° collimated beam.
LARGE LED APERTURE
Pixable ring with 48 SMD grouped into 16 RGB pixels of control that add a unique matrix effect.
MULTIPLE EFFECTS
pixable ring
Although compact and light weight, the unit includes 4 bi-directional colors open, 12 fixted + open static gobos, and an 8-facet indexing prism. In addition, it has a 0.2-20 per second strobe, one frost filtrer, and linear focus to create a soft or sharp projection.
.png)
Gallery
Video

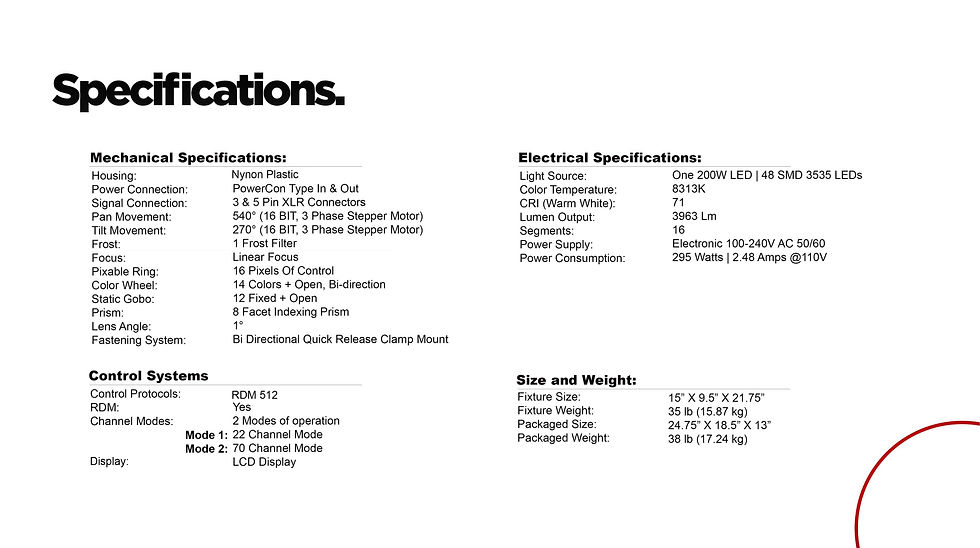

Specifications
Mechanical specifications:
Housing:
Power connection:
Signal connection:
Pan movement:
Tilt movement:
Frost:
Focus:
Pixable ring:
Color wheel:
Static gobo:
Prism:
Lens angle:
Fastening system:
Nylon plastic
PowerCON-type in and out
3 and 5-pin XLR connectors
540° (16-bit, 3 phase stepper motor)
270° (16 bit, 3 phase stepper motor)
1 frost filter
Linear focus
16 pixels of control
14 colors + open, bi-directional
12 fixed + open
8-facet indexing prism
1°
Bi-directional quick-release clamp mount
Electrical specifications:
Light source:
Color temperature:
CRI (warm white)
Lumen output:
Segments:
Power supply:
Power consumption:
Dimensions:
Fixture Size:
Fixture Weight:
Packaged size:
Packaged weight:
Control systems:
Control protocols:
RDM:
Channel modes:
Display:
One 200 W LED | 48 SMD 3535 LEDs
8,313 K
71
3,963 lm
16
Electronic 100-240 V AC, 50/60 Hz
295 Watts | 2.48 Amps @110 V
15" x 9.5" x 21.75"
35 lb (15.87 kg)
24.75" x 18.5" x 13"
38 lb (17.24 kg)
RDM 512
Yes
2 modes of operation:
Mode 1: 22 channel mode
Mode 2: 70 channel mode
LCD display
