Description:
The Pegasus is a wash, a strobe, a blinder, and an ideal replacement for house lights. Equipped with a 400W LED engine that delivers exceptional intensity with high-output diodes that ensure bright, even stage illumination.
This IP65-rated waterproof fixture is suitable for both indoor and outdoor professional environments. It offers magnetic and fixed mounting accessory options that support various lenses and barndoor accessories, and features a unique coupling mechanism for flexible array and grouping configurations.
The pendant mounting option makes it ideal for high-trim downlighting. Variable dimming curves provide a smooth, slow-burn effect. The five-color mixing system, with its deep red, vibrant green, congo blue, honey-like amber, and neutralizing lime, enables high CRI color blends up to 94 CRI.
Multi-purpose/Versatility (Wash light, Blinder, House light, Arrayable, Parnel)
High CRI (<94)
Wide Coverage (Beam 79° Field 111°)
Features:
Color mixing system
(RED, GREEN, BLUE, LIME, AMBER)
High Output
(14290 lm)
Variable dimming curves
IP rating 65
Gobos
Static Gobos:
Rotating Gobos:
Examples:
Video
Gallery
5.2 &5.8 GHz wW-DMX G3 &G4
compatible 2.4 GHz Normal
mode 100mW,
2.4 GHz Maximum Power 450mW
126 Channels using frequency
hopping
technology - AFHSS
Adaptive
Up to 32 Universes simultaneously
5dBi Max
Up to 100 Meters (Outdoor prime
operating environment)
<5ms
Up to 88 Hours
2.5 Hours
.35A @ 110v AC or .2A @ 240v AC
100-250V AC 50-60Hz
DMX 512, RDM
Power Indicator & Connection Status
This device complies with part
15 of the FCC rules.
IP65
Light Source:
Power:
Power Consumption:
Power Link:
Housing:
Outdoor Rating:
Mounting System:
Power Connection:
Cable Input:
Signal Connection:
Color Mix:
Kelvin:
Pan & Tilt:
Zoom:
Static Gobo Wheel:
Rotating Gobo Wheel:
Prisms:
Frost:
Die-Cast Aluminum
IP-65
2 Quick Release Clamp Mounts
Input: Seetronics SAC3MPX-67
Output: Seetronics SAC3FPX-67-01
Nema 5-15 to SAC3FX-67
(cable included)
Input: Seetronics J5F2C-W-B-67
5 pin XLR
Output: Seetronics K5F2C-W-B-67
5 pin XLR
CMY Color Mixing
Variable Color Wheel from 3500k to 6800k
Pan 540° 3.2S Cycle Turn, Tilt 270°
3° to 21° Electronic Zoom
12 Gobo’s
7 Rotating Gobo’s
Prism 1 - 5 Facet Linear Prism
Prism 2 - 8 Facet Circular Prism
Frost Effect
400w LED
Electronic 90-250VAC 50/60Hz
427 Watts 3.55 Amps @ 120V
4 Units @ 120V
RDM parameters:
Operating mode:
Specifications
Mechanical specifications:
Housing:
Outdoor Rating:
Mounting System:
Power Connection:
Signal Connection:
Beam angle:
Field angle:
Electrical specifications:
Light Source:
Power:
Power consumption:
Power Link:
Dimensions:
Fixture Size:
Fixture Weight:
Packaged Size:
Packaged Weight:
Die-Cast Aluminum
IP-65
Yoke with Quick Release Clamp Mount
Input: Seetronics SAC3MPX-67
Output: Seetronics SAC3FPX-67-01
Cable Input: Nema 5-15 to SAC3FX-67
(cable included)
Input: Seetronics J5F2C-W-B-67 5-pin XLR
Output: Seetronics K5F2C-W-B-67 5-pin XLR
79°
111°
400W+RGBLA
Electronic 100-240V AC 50/60
386 Watts 3.37 Amps @ 110V
4 Units @ 110V
11.3” X 10” X 9”
28.7 X 25.4 X 22.86 cm
10 lb (4.54 kg)
24” X 9” X 19”
60.96 X 22.86 X 48.26 cm
13 lb (5.89 kg)
Control system:
Protocol:
Channel Modes:
RDM parameters:
Operating mode:
Housing:
Outdoor Rating:
Mounting System:
Power Connection:
Signal Connection:
Beam angle:
Field angle:
DMX 512, RDM
7 Modes of Operation
1 Channel: Dimmer
3 Channel: Hue, Saturation, Value
5A Channel : Dimmer, Color Shift, Quality,
Color Macro, Kelvin
5B Channel: R, G, B, L, A
6 Channel: Dimmer, Halogen Dimmer,
Shutter, Dimmer Curve, Dimmer Response, Redshift
15A Channel: Dimmer, Shutter, R, G, B, L, A,
Color Macro, Kelvin, Dimmer Curve, Dimmer Response, Redshift, Macros, Macro Speed, Control
15B Channel: Dimmer, Dimmerfine,
Shutter, Red, Redfine, Green, Greenfine, Blue, Bluefine, Lime, Limefine, Amber, Amberfine, Dimmer Curve, Dimmer Response
Fixture Label, DMX Start Channel Address,
Channel Mode Set, Temperature Sensor, Keep
DMX Data, Scan Rate, Dimmer Curve, Fan Speed
DMX, Master/Remote, Auto, and Manual Settings
Via Display
Accesories:

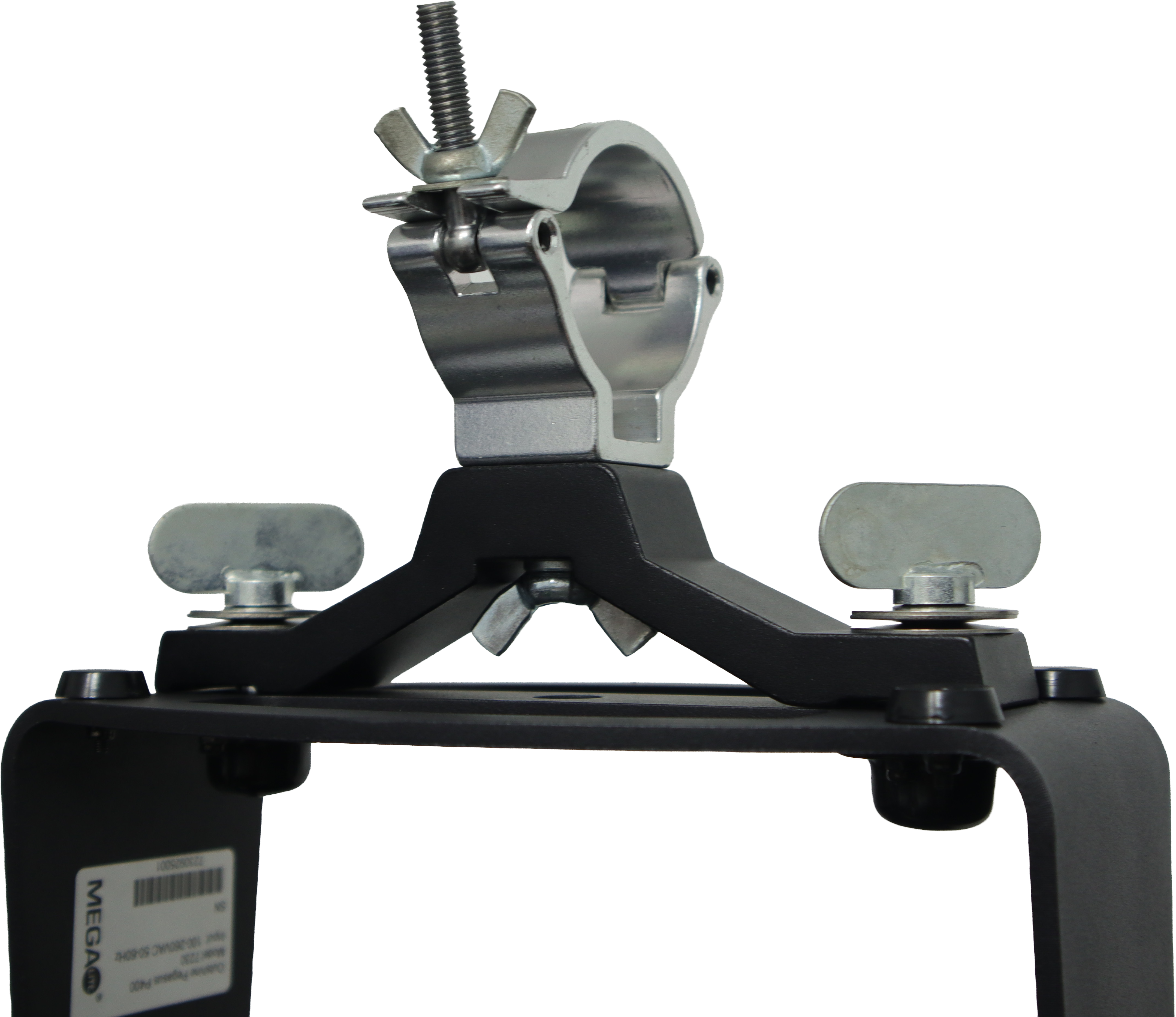

Quick release clamp mount
7230-HOU-QUI

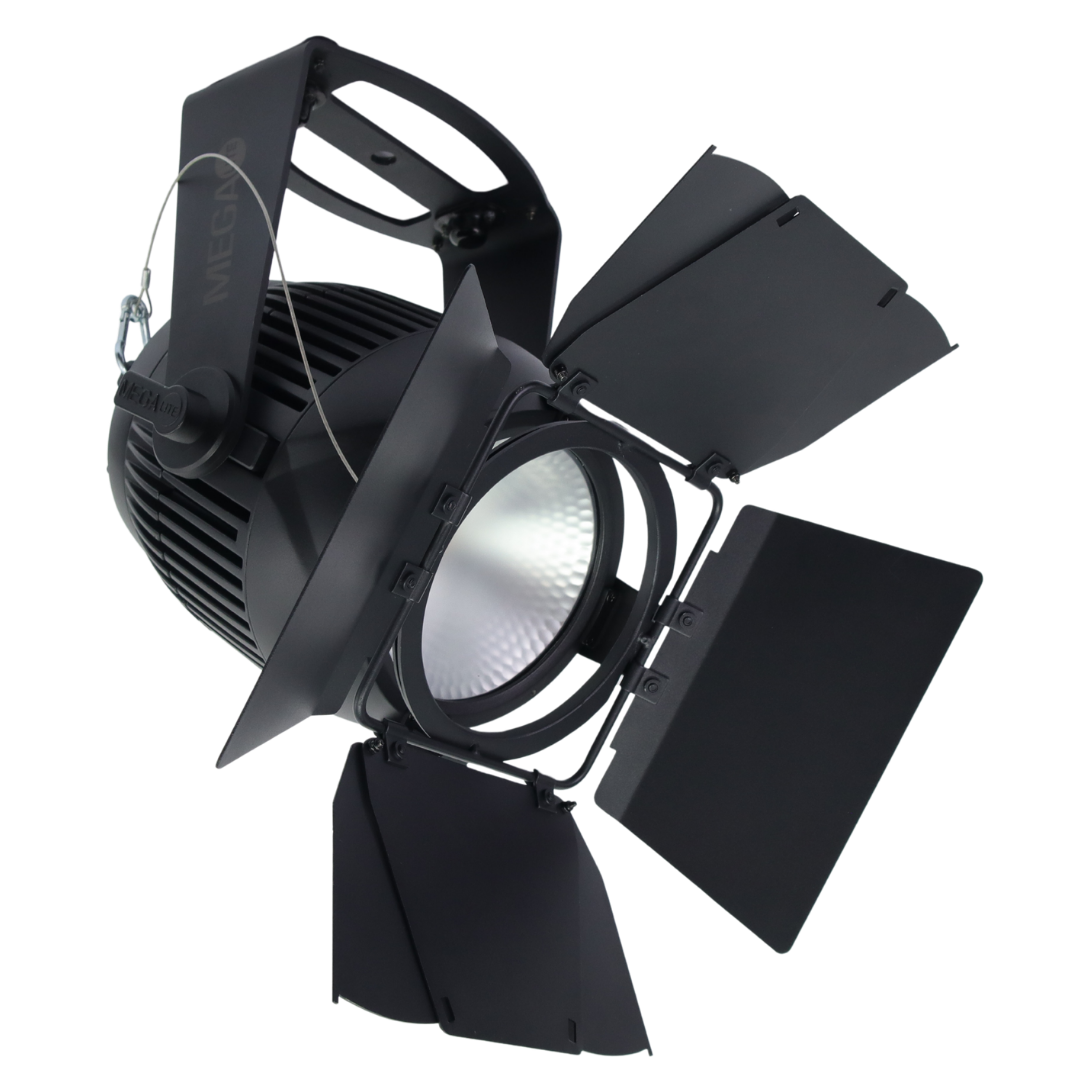

Barndoor
7230-ACC-BAR

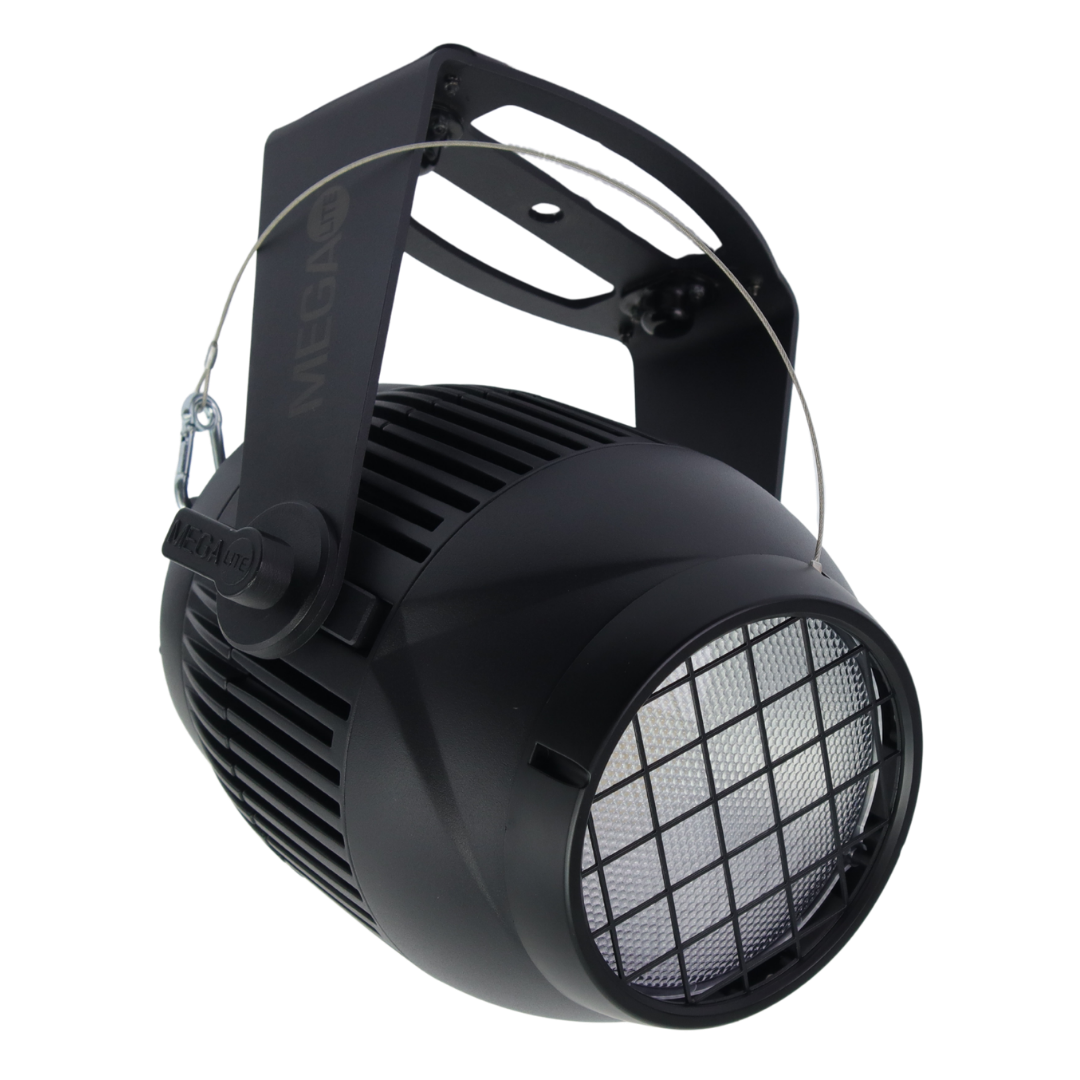

Retro filter
7230-ACC-RET

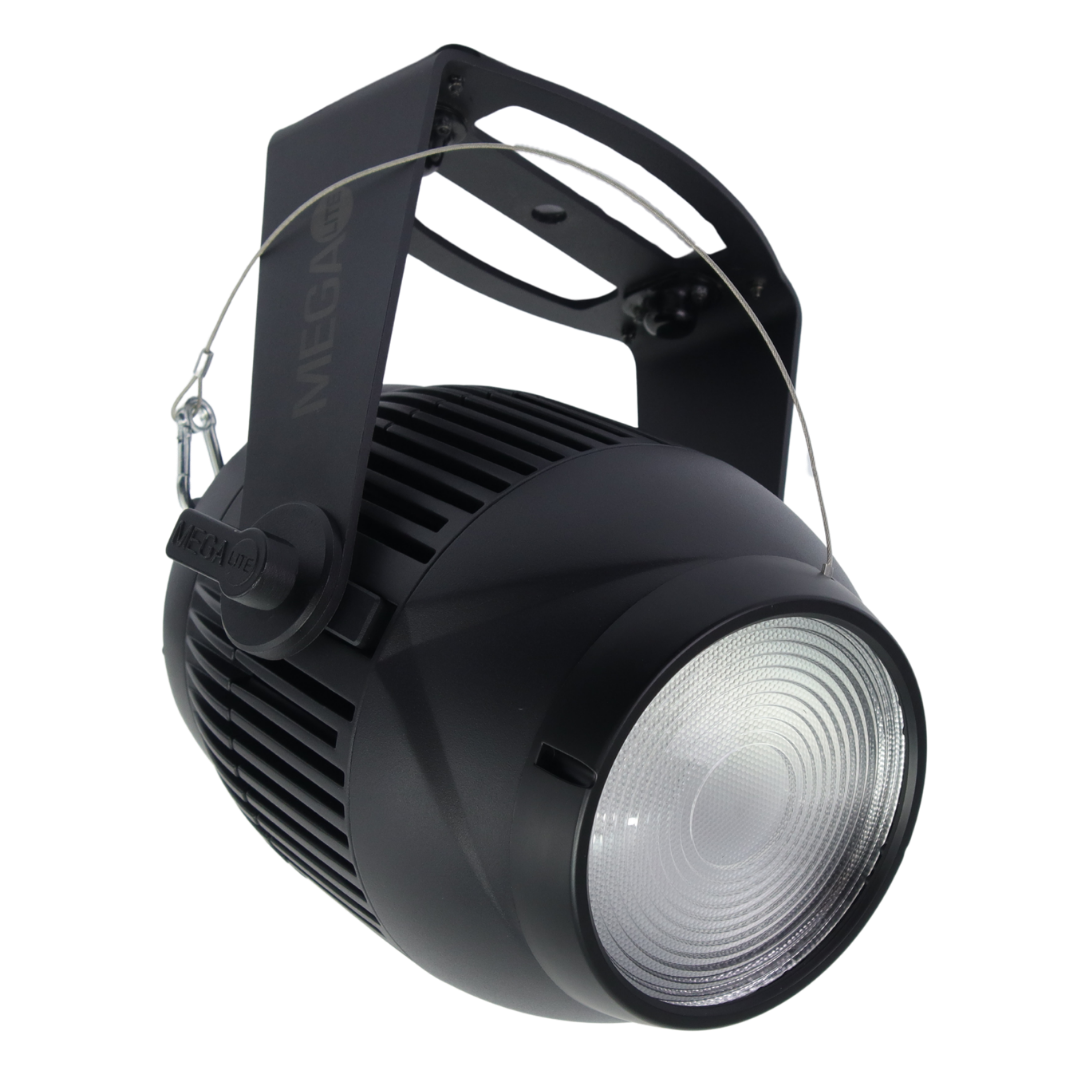

Fresnel filter
7230-ACC-FRE
.png)

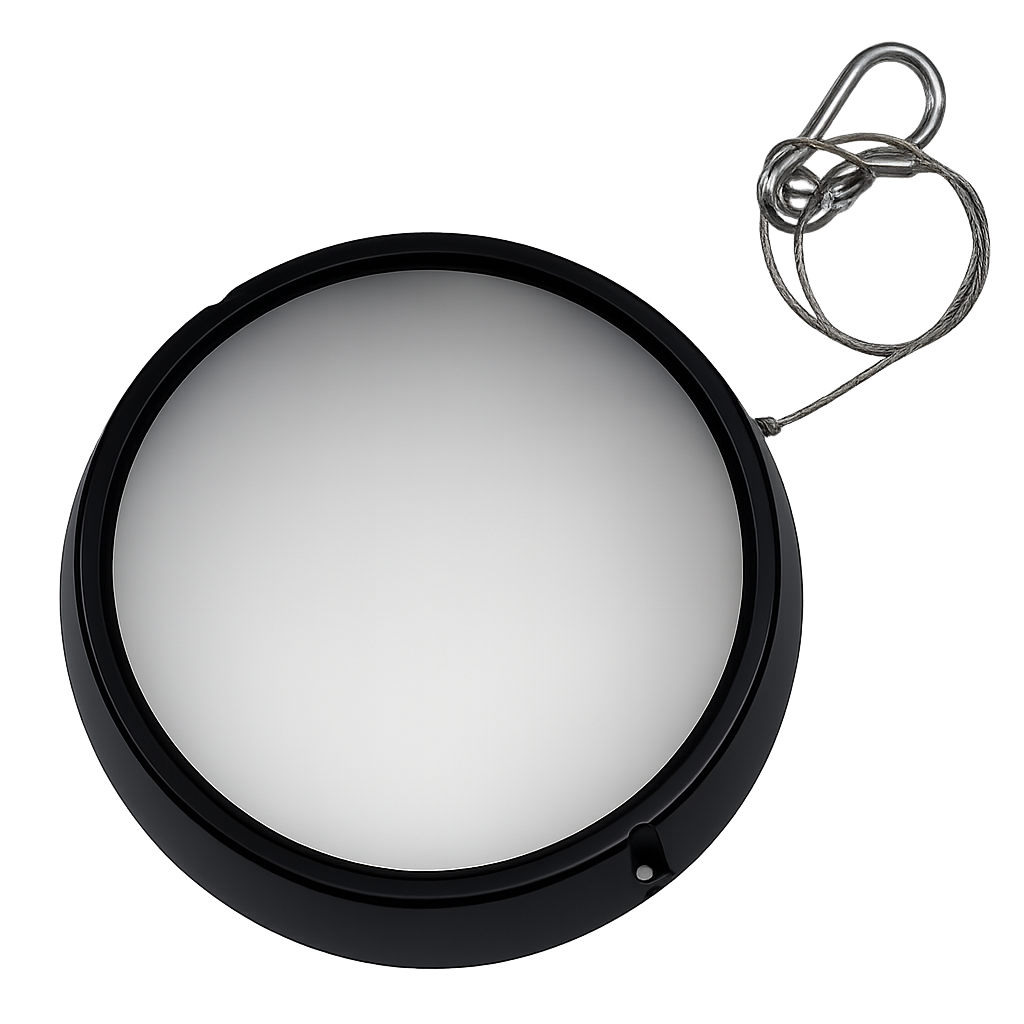

Diffusion filter
7230-ACC-DIF

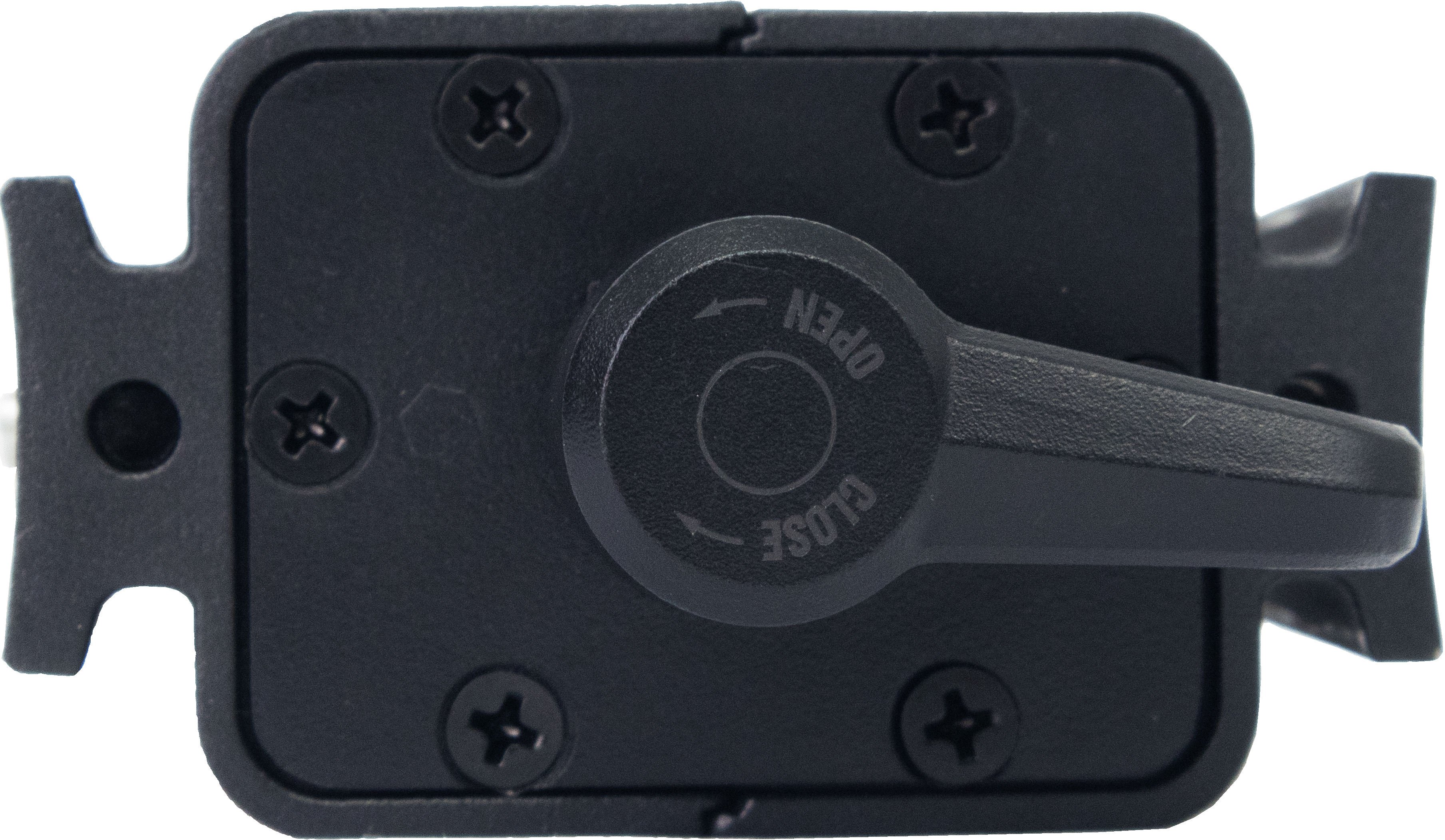

Fixture joiner
7230-ACC-JOI
Pendant mount
7230-ACC-PEN
