Description
The M-sphere: our advanced moving head mirror fixture, featuring a flat beam reflecting mirror on one side and a rotating half mirror ball on the other. This combination, along with its continuous rotation capability, produces a multitude of unique lighting effects.
Features
On one side of our moving head, we have a flat mirror face perfect for reflecting beams, creating a bouncing light beam effect.
BEAM REFLECTING MIRROR SIDE

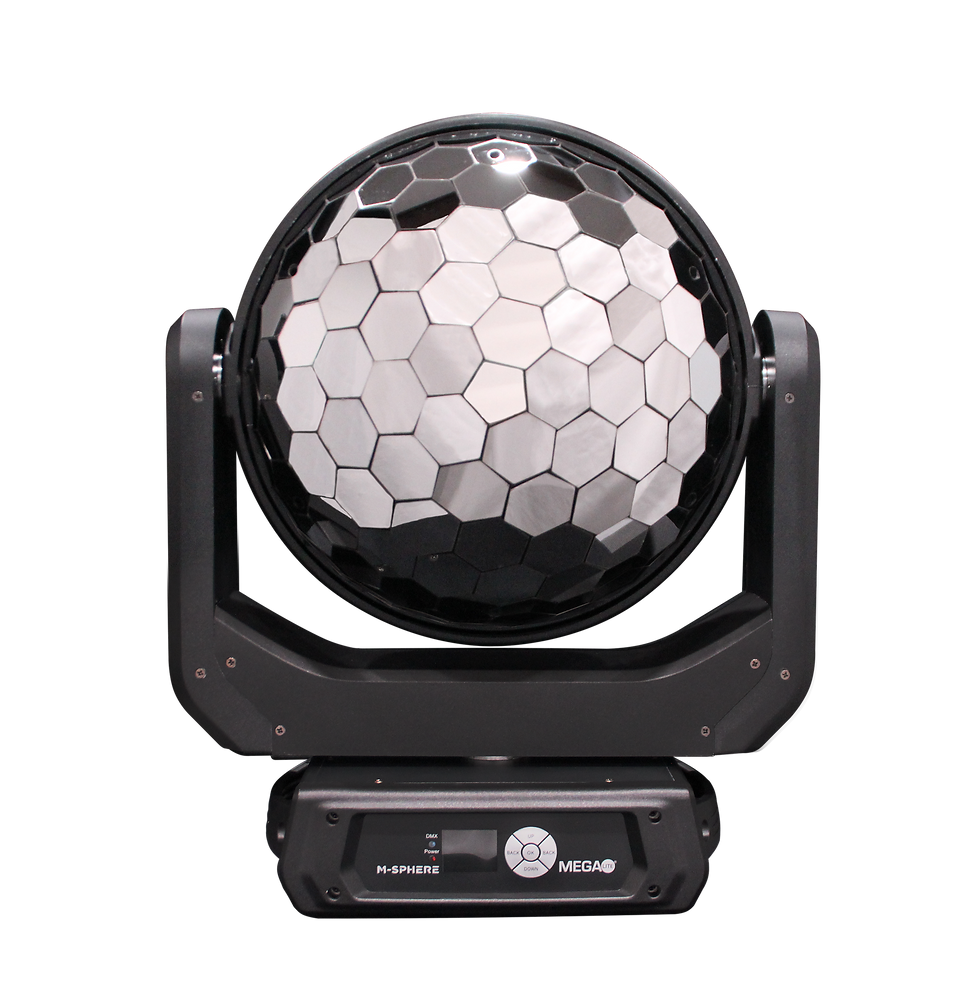

On the other side is a rotating half sphere covered in 101 large hex mirrors, which, when hit by beams, create a uniquely controllable mirror ball effect.
PIXABLE RING
LARGE HEX MIRRORS SIDE
This unit also offers an eye-catching pixable ring light, making this already unique fixture even more exceptional.
Gallery
Video
Specifications
Mechanical specifications:
Housing:
Fastening system:
Power connection:
Signal connection:
Pan movement:
Tilt movement:
Mirror ball rotation:
Large hexagon reflectors:
Large mirror:
Power link:
High-temperature, low flammability plastic
2 quick-release clamp mounts
Input: Seetronics SAC3MPX
Output: Seetronics SAC3FX
Cable: Seetronics SAC3FX to NEMA 5-15
3- and 5-pin XLR in and out
560° pan with infinity pan rotation
360° tilt with infinity tilt rotation
Infinity mirror ball rotation in two Directions,
101 large, hexagon high-polished metal reflectors
13” high-polished metal reflector
60 units @ 110 V, 20 Amps
Electrical specifications:
Light source:
Signal support:
Power:
Power consumption:
Control systems:
Protocol:
Channel modes:
Operating mode:
Dimensions:
Fixture size:
Fixture weight:
Packaged size:
Packaged weight:
62 x .25 W RGB
DMX512, RDM
Electronic 100 - 240 V AC, 50/60 Hz
28 Watts | .25 Amps | @ 110 V
DMX 512
18-Channel mode
66-Channel mode with pixel control
Programmable single scene via manual memory settings
Settings via display
18.62" x 11.8" x 22.25"
37 lb
22" x 19.25" x 21"
44 lb
