Description

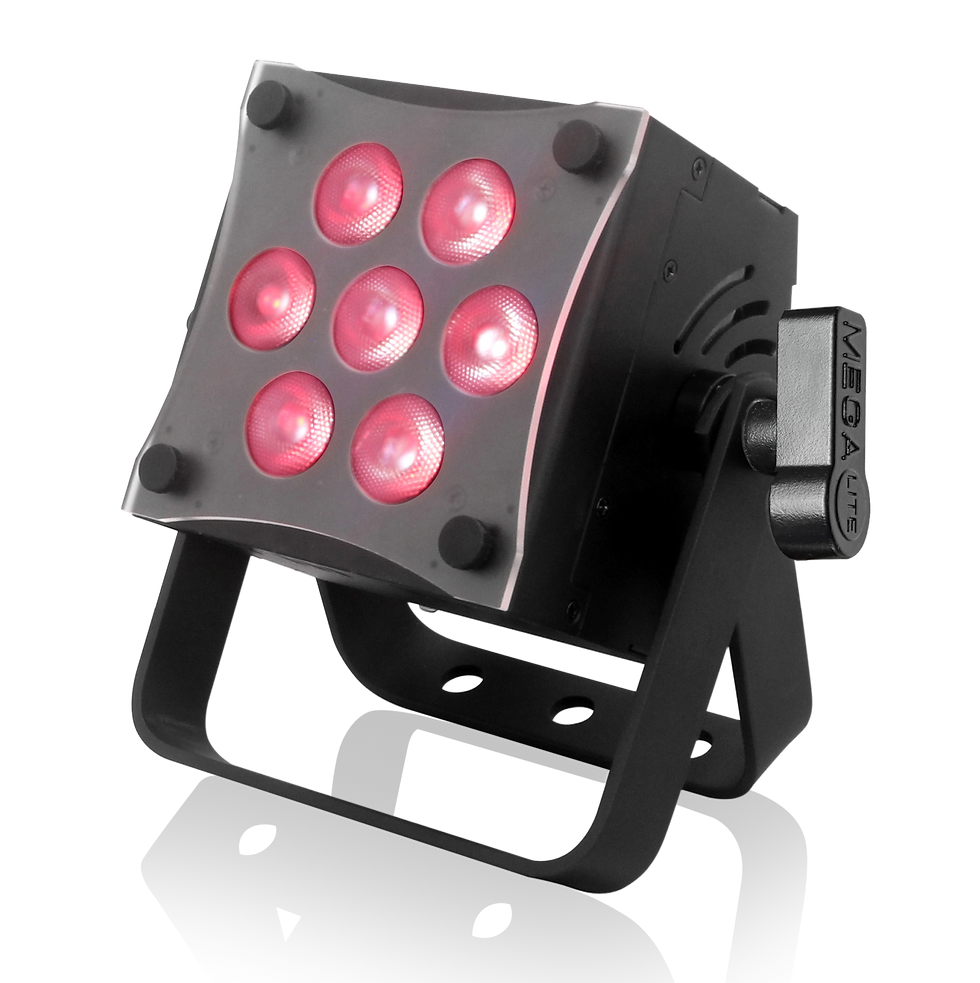

The Baby Color Q70 IR is a compact, bright, color-changing fixture controlled with an infrared remote or via DMX. Because of its size, its output is impressive, and it can produce various colors, including pastel shades and bright primary colors. This fixture has a 16° beam angle and an included diffuser that widens the beam angle to 25°. It features a dimmer, strobe, macro effects, and audio control chases via the display.
Its compact size and IR controller make it perfect for banquets, Production companies, and temporary applications. The unit is also ideal for permanent, fully controlled systems.
The baby color series has several options and even has an IP-rated sister, the Tuff Baby.
Features
The Baby Color Q70 IR has an infrared remote controller to set lighting commands. The controller can be used with or without the diffusion cover, as long as it is facing the front LEDs.
IR REMOTE CONTROL
This compact, powerful fixture is just five pounds, making it ideal for productions, weddings, banquets, conference rooms, and more.
RGBW COLOR MIXING
COMPACT
This unit is built with seven 10W RGBW LEDs that allow for color-mixing with red, green, blue, and cool white. Whether you're looking to produce vibrant and dynamic hues or delicate and intricate pastel luminations.
Specifications
Mechanical specifications:
Power Connection:
Signal Connection:
Lens Angle:
Diffusion Beam Angle:
Fastening System:
Control systems:
Control protocols:
Channel modes:
Display:
Powercon type in and out
5 Pin XLR connectors in and out (optional
3-Pin)
16°
27°
6” Dual Yoke
DMX 512, Audio trigger, main and remote function, infrared controller
5 Modes of Operation
Mode 1: 3 Channel mode
Mode 2: 4 Channel mode
Mode 3: 7 Channel mode
LED
Electrical specifications:
Light source:
Color temperature:
CRI (warm white):
Lumen Output:
Power supply:
Power consumption:
Power link:
Dimensions:
Fixture size:
Fixture weight:
Packaged size:
Packaged weight:
7 X 10W RGB LEDS
7702K
78
2988lm
110V-240 50/60 Hz
49 Watts / .65 Amps / .61 PF
22 Units at 15 Amps @ 110V
8.12” x 4.3” x 7.8”
(20.62 cm x 10.92 cm x 19.81 cm)
5 lb (2.27 kg)
10” x 9.5” x 5.75”
(25.4 cm x 24.13 cm x 14.60 cm)
7 lb (3.18 kg)
