Description

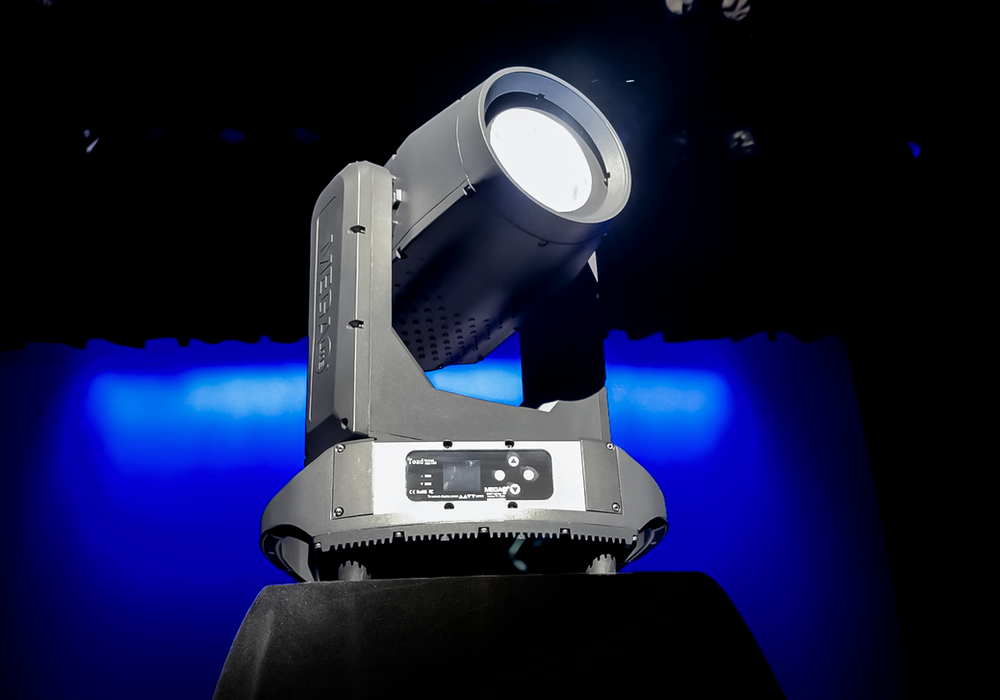

The Toad Hybrid 400 uses a powerful 400W LED with a Correlated Color Temperature of 8533K, which is very blue and great for aerial effects. The CCT can be corrected to your needs with a graduated CTO color wheel. The Toad is a powerful combination of two advanced fixtures: a profile fixture with a precise 38° beam angle and a focused narrow-beam fixture with a sharp 3° angle. With the application of the frost filter, it instantly transforms into an impressive wash fixture. Its IP65 rating guarantees
its reliability for both indoor and outdoor applications.
The Toad Hybrid 400 excels in delivering pulse strobe, effect strobe, and standard
strobe modes with remarkable precision. The CYM color mixing system, complete with three graded wheels for Cyan, Yellow, and Magenta, allows for exceptional color blending, while the color wheel offers eight distinct colors and a variable CTO for maximum versatility.
The fixture boasts two gobo wheels: one presents seven rotatable and indexable glass gobos that create stunning projection effects, and the other is an aerial gobo wheel with 12 positions for creative designs. The inclusion of two non-overlapping prisms—a sophisticated eight-segment prism and an innovative five-segment linear prism—ensures striking aerial effects.
The scanning system offers precise pan and tilt movements, supported by automatic error correction for accurate positioning. The intuitive LCD screen displays critical information, including working time, fault detection, and control settings. The Toad Hybrid 400 operates seamlessly via DMX512+RDM, making it a formidable tool for any lighting professional.
Features
A versatile 3-in-1 fixture that functions as a sharp beam, a precise spot, and a smooth wash—all in one powerful unit.
HYBRID: BEAM
SPOT WASH
Achieve seamless and dynamic color blends with the CYM system, offering graded Cyan, Magenta, and Yellow wheels for limitless creativity.
CMY color mixing
Built to withstand tough environments, its IP65 rating ensures reliable performance both indoors and outdoors.
Features an intense 8533K color temperature for striking aerial effects, adjustable with a variable CTO to match any lighting design.
CCT CORRELATED
COLOR TEMP 8K
IP65
Powered by a robust 400W LED engine, delivering brilliant output with energy efficiency and long-lasting performance.
LED FIXTURE 400
.png)
Gobos.
Static Gobos:
Rotating Gobos:
Examples:
Gallery
Video
Specifications
Lumen8
- Streamlined workflow, less steps to achive desired look.
- Customatizable playback and programming views with dual screen support.
- Cue view with detailed cue information and custom notes on the playback screen.
- Create visually stunning effects quickly with our streamlined fader view fx engine.
- Custom fixture views, gropus, and layouts for faster fixture selection.
- 24 Universes available with artnet.
- Control both moving lights and static lights with ease.
Enlighten
- Button froups with dimming group faders that help organiza different looks.
- Ability to crossfade video (BMP, AVI, MPG, WMV, MOV & MP4) and lighting.
- Pan and tilt tracking for better transitions between moving looks.
- Lighting programmer assistant quickly produces multiple pages of looks based on user defined parameters.
- Position / color presets.
- Real time fx.
- Virtual matrix UVE video to matrix compability.
- Built in RGB fx.
- Multi universe output via artnet.
- UVE programming capabilities, make on the fly.
Disco
- Lighting Programmer Assistant quickly produces multiple pages of looks based on user-defined parameters.
- Easily create synchronized timeline shows for pre-programmed intros or tracks.
- Control of live show from DJ controller via provided WAV file.
- Quickly access the strobe function on all strobe-enabled fixtures.
- Dedicated fog controller section with timing and bursts.
- Sound-active tempo base integration via line audio input.
- MIDI-assignable sequence buttons.
- RGB and RGBWA matrix capability.
Shared highlights
- Simple FIXTURE PROFILE BUILDER.
- Up to 24 MULTI-UNIVERSE OUTPUT via ARTNET.
- Direct FADER CHANNEL PROGRAMMING.
- Simplified built-in 3D VISUALISER.
Dimensions
-Fixture Size:
- Fixture Weight:
- Packaged Size:
- Packaged Weight:
23" x 22.5" x 12.2"
49 lbs
30.75" X 27.25" X 17"
57 lbs
5.2 &5.8 GHz wW-DMX G3 &G4
compatible 2.4 GHz Normal
mode 100mW,
2.4 GHz Maximum Power 450mW
126 Channels using frequency
hopping
technology - AFHSS
Adaptive
Up to 32 Universes simultaneously
5dBi Max
Up to 100 Meters (Outdoor prime
operating environment)
<5ms
Up to 88 Hours
2.5 Hours
.35A @ 110v AC or .2A @ 240v AC
100-250V AC 50-60Hz
DMX 512, RDM
Power Indicator & Connection Status
This device complies with part
15 of the FCC rules.
IP65
Light Source:
Power:
Power Consumption:
Power Link:
Housing:
Outdoor Rating:
Mounting System:
Power Connection:
Cable Input:
Signal Connection:
Color Mix:
Kelvin:
Pan & Tilt:
Zoom:
Static Gobo Wheel:
Rotating Gobo Wheel:
Prisms:
Frost:
Die-Cast Aluminum
IP-65
2 Quick Release Clamp Mounts
Input: Seetronics SAC3MPX-67
Output: Seetronics SAC3FPX-67-01
Nema 5-15 to SAC3FX-67
(cable included)
Input: Seetronics J5F2C-W-B-67
5 pin XLR
Output: Seetronics K5F2C-W-B-67
5 pin XLR
CMY Color Mixing
Variable Color Wheel from 3500k to 6800k
Pan 540° 3.2S Cycle Turn, Tilt 270°
3° to 21° Electronic Zoom
12 Gobo’s
7 Rotating Gobo’s
Prism 1 - 5 Facet Linear Prism
Prism 2 - 8 Facet Circular Prism
Frost Effect
400w LED
Electronic 90-250VAC 50/60Hz
427 Watts 3.55 Amps @ 120V
3 Units @ 120V
Specifications
Mechanical specifications:
Housing:
Outdoor Rating:
Mounting System:
Power Connection:
Cable Input:
Signal Connection:
Color Mix:
Kelvin:
Pan & Tilt:
Zoom:
Static Gobo Wheel:
Rotating Gobo Wheel:
Prisms:
Frost:
Die-Cast Aluminum
IP-65
2 Quick Release Clamp Mounts
Input: Seetronics SAC3MPX-67
Output: Seetronics SAC3FPX-67-01
Nema 5-15 to SAC3FX-67
(cable included)
Input: Seetronics J5F2C-W-B-67
5 pin XLR
Output: Seetronics K5F2C-W-B-67
5 pin XLR
CMY Color Mixing
Variable Color Wheel from 3500k to 6800k
Pan 540° 3.2S Cycle Turn, Tilt 270°
3° to 21° Electronic Zoom
12 Gobo’s
7 Rotating Gobo’s
Prism 1 - 5 Facet Linear Prism
Prism 2 - 8 Facet Circular Prism
Frost Effect
Electrical specifications:
Light Source:
Power:
Power consumption:
Power Link:
Control system:
Protocol:
Channel Modes:
Operating Mode:
Dimensions:
Fixture Size:
Fixture Weight:
Packaged Size:
Packaged Weight:
Included
1pc TOAD HYBRID LED 400 / 1pc Power cable /
1pc Quick release clamps / 1pc User Manual.
400w LED
Electronic 90-250VAC 50/60Hz
427 Watts 3.55 Amps @ 120V
3 Units @ 120V
DMX 512, RDM
1 Mode of operation
23 Channel Mode
DMX, Auto and Manual
Settings Via Display
16.9” X 13.8” X 26.6”
42.92 X 35.05 X 67.56cm
61.2lb 27.7kg
20” X 18.5” X 27”
50.8 X 46.99 X 68.58cm
75lb 34.01kg
