Description

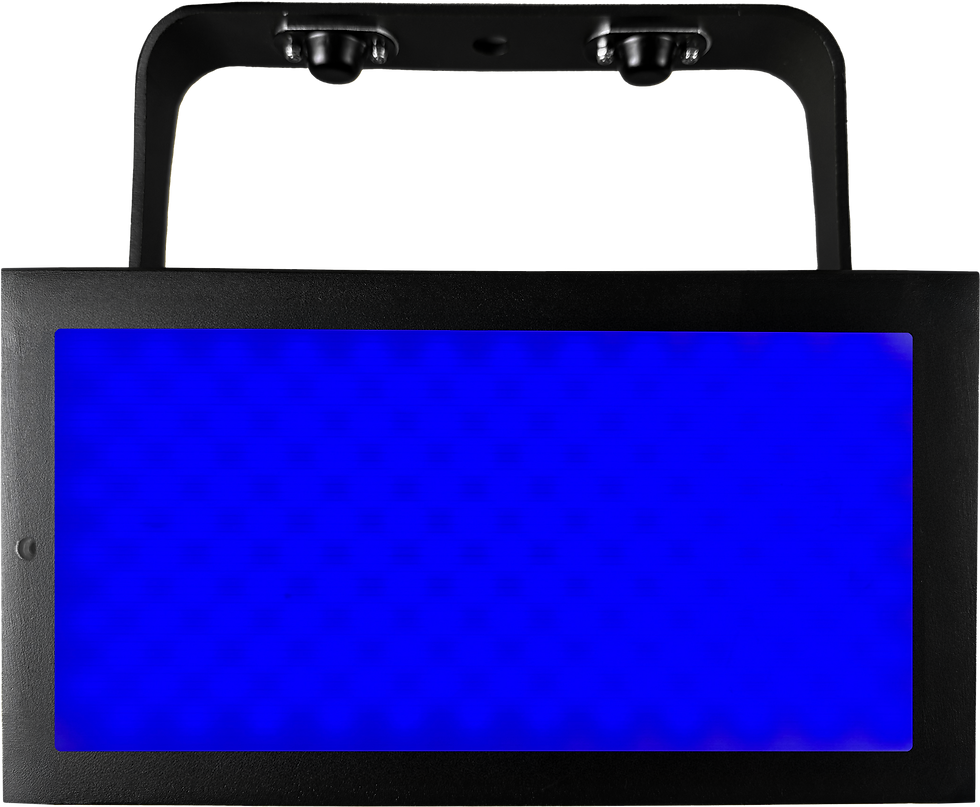

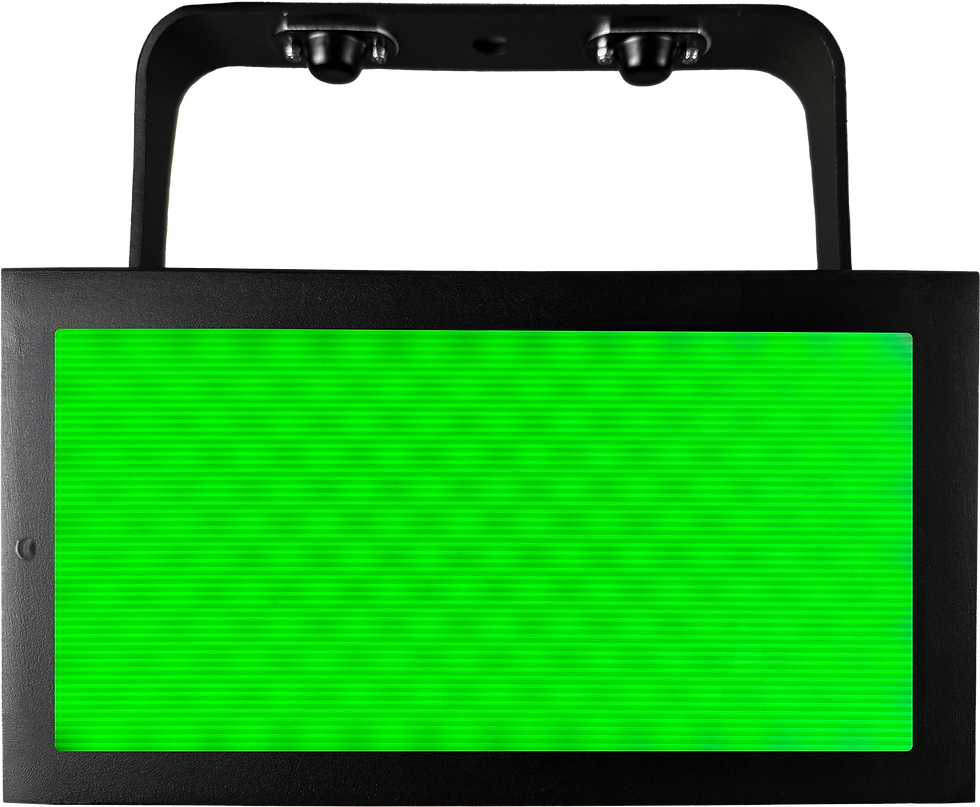

The Teclight Spectra is a versatile lighting fixture that offers a comprehensive solution for a wide range of professional applications. As an essential tool for lighting professionals, it offers manual control and variable white as a wide-key light. Users can adjust both intensity and color temperature from 1500K to 15000K using two control knobs. Designed for ease of use, the fixture offers plug-and-play functionality and, when connected via DMX, grants access to a full color spectrum. Or manually control several functions via its onboard display.
The Teclight Spectra utilizes two chip sets: one RGB and another that incorporates Amber, Cyan, and Lime, enabling it to produce a broad array of colors as needed. Additionally, with a high color rendering index (CRI) averaging 96 in manual mode and a high refresh rate, the fixture is particularly well-suited for broadcasting and other professional lighting needs. The adjustable color temperature allows users to select the precise warmth or coolness of light required for various applications, spanning 1500K to 15000K. This feature facilitates seamless adaptation to diverse lighting environments and staging requirements.
Features
Embedded DMX/Artnet/ACN Controller
With an average CRI of 96 in manual mode, the fixture accurately reproduces colors across various lighting conditions. This high CRI value ensures that colors appear vivid and accurate to life, an essential requirement in applications such as film, photography, and broadcast production, where faithful color representation has a significant impact on the quality of visual output.
Cast aluminum housing:
It provides structural durability and protection for the fixture’s internal components. This robust construction not only enhances the unit's longevity but also provides resistance to physical impacts and environmental stress, ensuring reliable operation in both indoor and outdoor settings.
IP65 rating:
The fixture is protected against dust ingress and low-pressure water jets from any direction, ensuring reliable performance in demanding outdoor environments.
Diffuser:
The diffuser serves a crucial function by softening and evenly distributing the light emitted by the Teclight Spectra. This results in reduced harsh shadows and glare, producing a more uniform and visually pleasing illumination. Using a diffuser is especially important in professional applications such as film, photography, and live broadcasting.

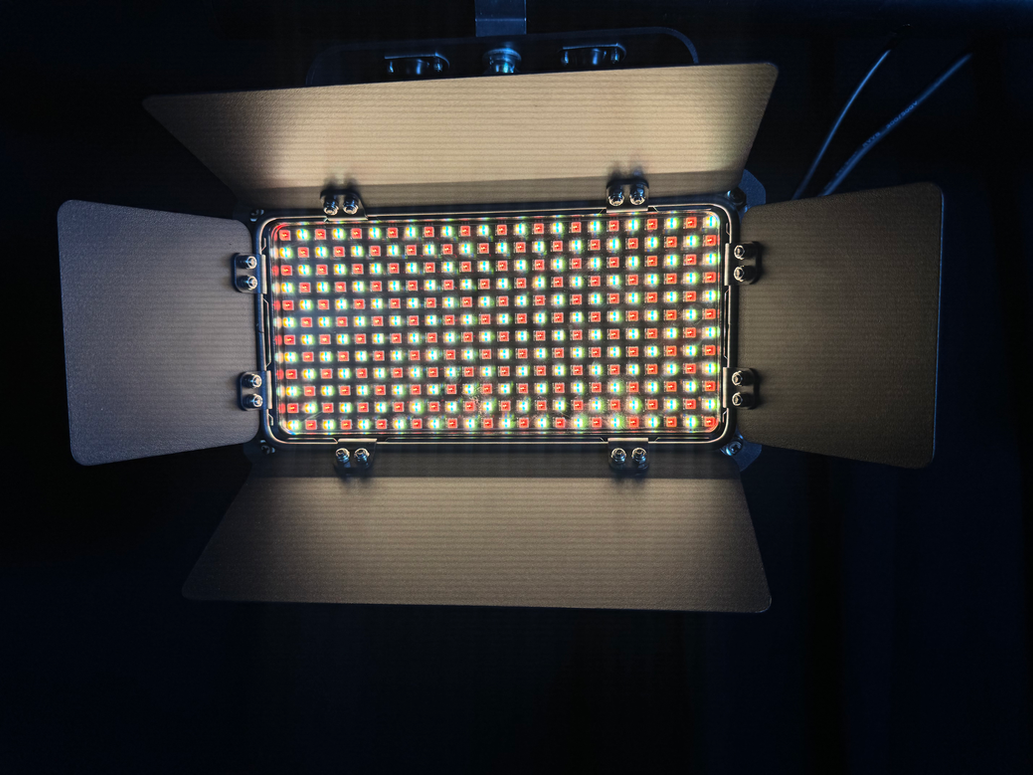

Barn door:
Barn Door accessories are adjustable metal flaps attached to the perimeter of the lighting fixture, allowing users to precisely shape and direct the light beam.
ETL-listed:
The fixture has been tested and meets safety and quality standards established by Electrical Testing Laboratories. This certification demonstrates compliance with North American safety regulations, ensuring the equipment is safe for professional use.
RDM-ready (Remote Device Management):
Enabling bi-directional communication with our Total control system or most RDM-ready controllers.
147º beam angle:
It enables broad coverage from a compact fixture. It's a powerful 11640 lm full-spectrum fixture that can create almost any color we can see and some we can't.
Unique six color mixing system
Standalone manual control directly from the unit using intensity knobs and a color temperature knob
Gallery
Videos
5.2 &5.8 GHz wW-DMX G3 &G4
compatible 2.4 GHz Normal
mode 100mW,
2.4 GHz Maximum Power 450mW
126 Channels using frequency
hopping
technology - AFHSS
Adaptive
Up to 32 Universes simultaneously
5dBi Max
Up to 100 Meters (Outdoor prime
operating environment)
<5ms
Up to 88 Hours
2.5 Hours
.35A @ 110v AC or .2A @ 240v AC
100-250V AC 50-60Hz
DMX 512, RDM
Power Indicator & Connection Status
This device complies with part
15 of the FCC rules.
IP65
Light Source:
LED Type:
CRI:
CCT (at full):
Lumen Output:
Power Supply:
Power Consumption:
Display:
312 X 05W LEDs
First type LED: Red= 631nm /
Green= 521nm / Blue= 458nm
Second type LED: Amber= 614nm / Cyan=451 / Lime=563nm
96.1
6217K
11640 lm
Electronic 100-240V AC 50/60
146Watts 1.22 Amps @110V PFC .99
LCD
Control Protocols:
Channel Modes:
Display:
Specifications
Mechanical specifications:
Housing:
IP Rating:
Power Connection:
Signal Connection:
Fastening System:
Control System:
Control Protocols:
Channel Modes:
RDM
Knobs:
Via Display:
Die-Cast Aluminum
IP65
Input: Seetronics SAC3PX-67 Panel Mount
Output: Seetronics SAC3FX-67 Panel Mount
5 Pin XLR In and Out
Mounting yoke with quick-release clamp
DMX512
4 Modes of operation
Mode 1: 6 Channel mode
Mode 2: 7 Channel mode
Mode 3: 8 Channel mode
Mode 4: 11 Channel mode
Address, Mode Sensor monitoring, hours, and device reset.
Dimmer, CCT
Standalone, Manual
Electrical specifications:
Light Source:
LED Type:
CRI:
CCT:
Lumen Output:
Power Supply:
Power Consumption
Display:
Dimensions:
Fixture Size:
Fixture Weight:
Packaged Size:
Packaged Weight:
Included
1pc Teclight Spectrar / 1pc Power Cable /
1pc Quick Disconnect Clamp Mount / 1pc User Manual.
DMX512, RDM, Knob control(Dimmer/CCT),
4 Modes of operation
Mode 1: 6 Channel mode
Mode 2: 7 Channel mode
Mode 3: 8 Channel mode
Mode 4: 11 Channel mode
Manual
312 X 0.5W LEDs
Red= 631nm / Green= 521nm /Blue= 458nm
Amber= 614nm / Cyan=451nm / Lime=563nm
96 Optimized Via DMX Control
94 Warm White 3060K
96 Cool White 13518K
6217K (at full)
11640 lm
Electronic 100-240V AC 50/60Hz
146Watts 1.22 Amps @110V PFC .99
LCD
10.75” X 5.39” X 6”
(27.30 cm x 13.69 cm x 15.24 cm)
8.3 lbs (3.76 kg)
13.75” X 12.5” X 8”
(34.92 x 31.75 x 20.32 cm)
10 lbs (4.53 kg)
Housing:
IP Rating:
Power Connection:
Signal Connection:
Fastening System:
Housing:
IP Rating:
Power Connection:
Signal Connection:
Fastening System:
Accesories

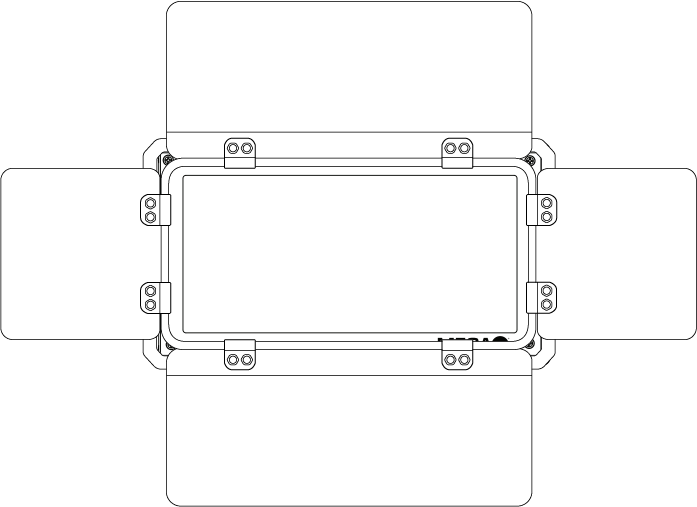

Barndoor
7080-ACC-BAR
Diffusion Holder
7080-ACC-DIF
Diffusion Filter
7080-ACC-120-FIL

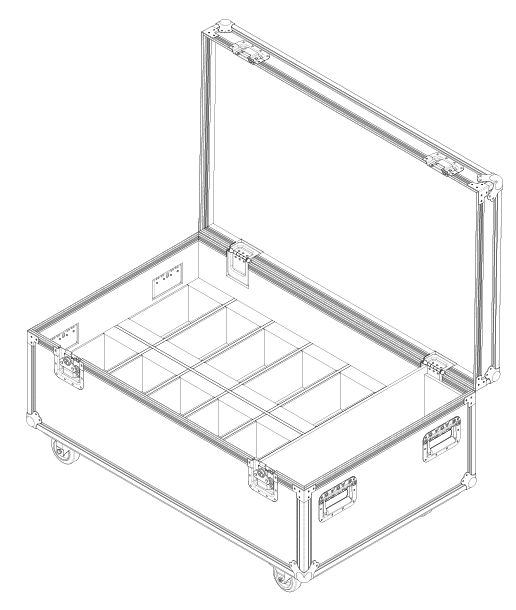

12 Unit Road Case
CAS-7080-12-B
