Description

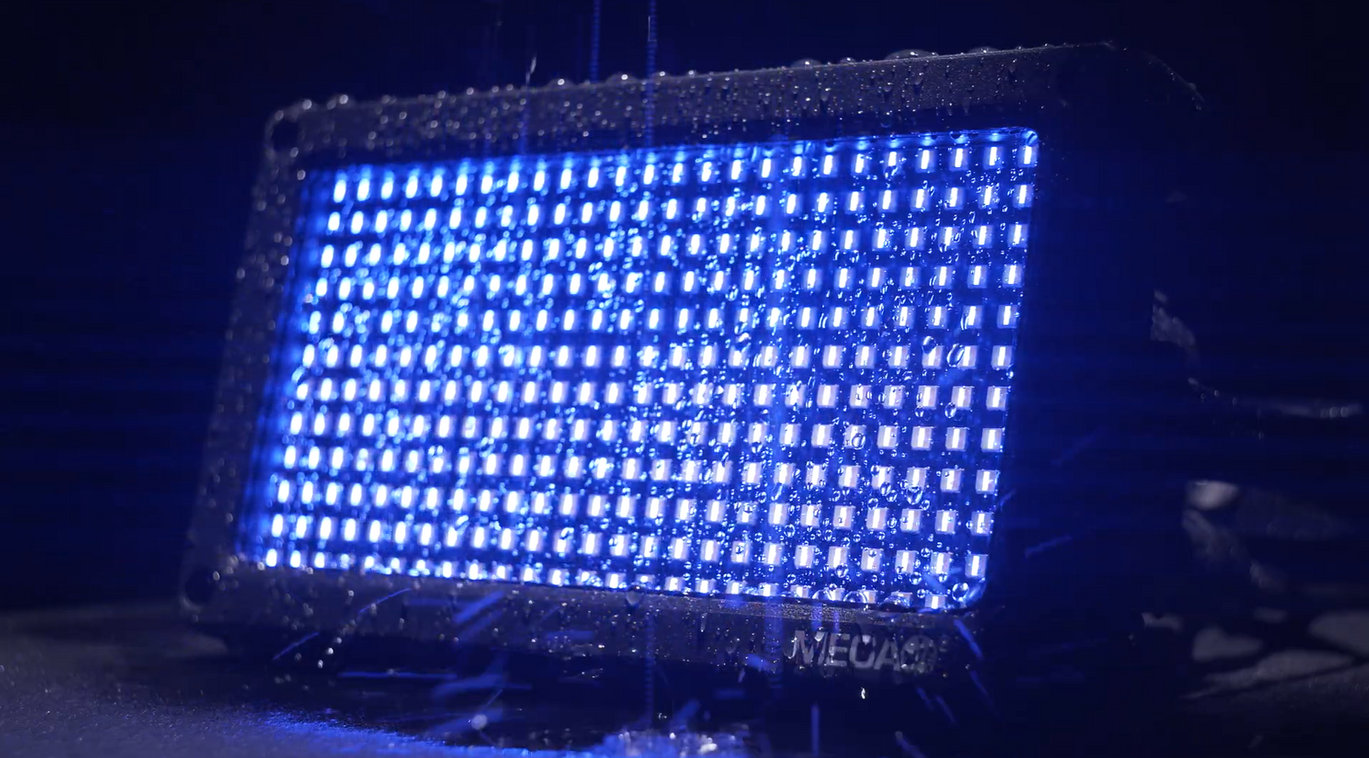

The TecLight BVW150 is a multipurpose LED fixture equipped with a unique tunable LED light source that allows you to manually control the color temperature from 2700K to 7200K and its intensity directly from the back of the fixture. This makes it ideal for applications where a quick adjustment of the color temperature is needed, it has a 95 CRI in warm and cool white combined. Examples include live broadcasting, photography, product inspection, theatrical work areas, makeup, and wherever variable color temperature is required.
The unit can be left at the desired color temperature, turned on via relay or switch, and used as a work or rehearsal light.
We have also packed and added blue LED, making this unit ideal as a Blues or Running light offstage. It can be coupled via a proprietary system to increase coverage and output, and its IP 65 rating makes it ideal for outdoor and indoor applications.
This fixture can be DMX controlled, has RDM, or can be used in stand-alone mode.
.png)
Specifications
Mechanical specifications:
IP Rating:
Housing:
Power Connection:
Signal Connection:
Fastening System:
Fan:
Control systems:
Control protocols:
Channel modes:
Display:
IP65
Die-Cast Aluminum
Input: Seetronics SAC3PX-67
Output: Seetronics SAC3FX-67
plug to Nema 5/15
5 Pin XLR In and Out
Mounting yoke with quick-release clamp
4 fan speeds and silent mode
DMX512, RDM, Knob control(Dimmer/CCT),
3 Modes of operation
Mode 1: 3 Channel mode
Mode 2: 4 Channel mode
Mode 3: 5 Channel mode
Manual
Electrical specifications:
Light source:
Color temperature:
CRI (Warm & Cool White combined):
Lumen Output:
Power supply:
Power consumption:
Display:
Dimensions:
Fixture size:
Fixture weight:
Packaged size:
Packaged weight:
312 X B, VW 0.5W LEDs
Blue = 448nm
Warm White = CCT 2762K
Cool White = CCT 7211K
Warm and Cool White = CCT 4274K
95
9232 Lm - 13004 Lm
Electronic 100-240V AC 50/60
155 Watts 1.3 Amps @120V
LCD
10.75” X 5.39” X 6”
(27.30 cm x 13.69 cm x 15.24 cm)
8.3 lbs (3.76 kg)
13.75” X 12.5” X 8”
(34.92 x 31.75 x 20.32 cm)
10 lbs (4.53 kg)
312 X B, VW 0.5W LEDs
Blue = 448nm
Warm White = CCT 2762K
Cool White = CCT 7211K
Warm and Cool White = CCT 4274K
95
9232 Lm - 13004 Lm
Electronic 100-240V AC 50/60
155 Watts 1.3 Amps @120V
LCD
