Description
The Streamline Wash is a linear wall washer equipped with 180 RGBWW LEDs and a 70° x 110° lens. It functions optimally when placed 8-12 inches from the wall. The fixture measures 16.4 feet (5 meters) long and consumes 90 watts. It offers adjustable white and mixed-color lighting. As part of the Deco Line, it is compatible with the CV4 driver, which supports up to four full-length fixtures, one per output. The fixture can bend inward and outward from the illuminated side and can be cut at 6.5-inch (165 mm) intervals. It includes mounting clips and connects via an 8-foot, 5-conductor lead cable (COM+ and RGBWW-). Rated IP66 for outdoor use and UL listed.
Deco Line brings smart technology to any space — effortlessly. Featuring intuitive lighting controllers and low-voltage LED fixtures, this system is designed for easy integration in homes, hotels, and commercial environments.
Features

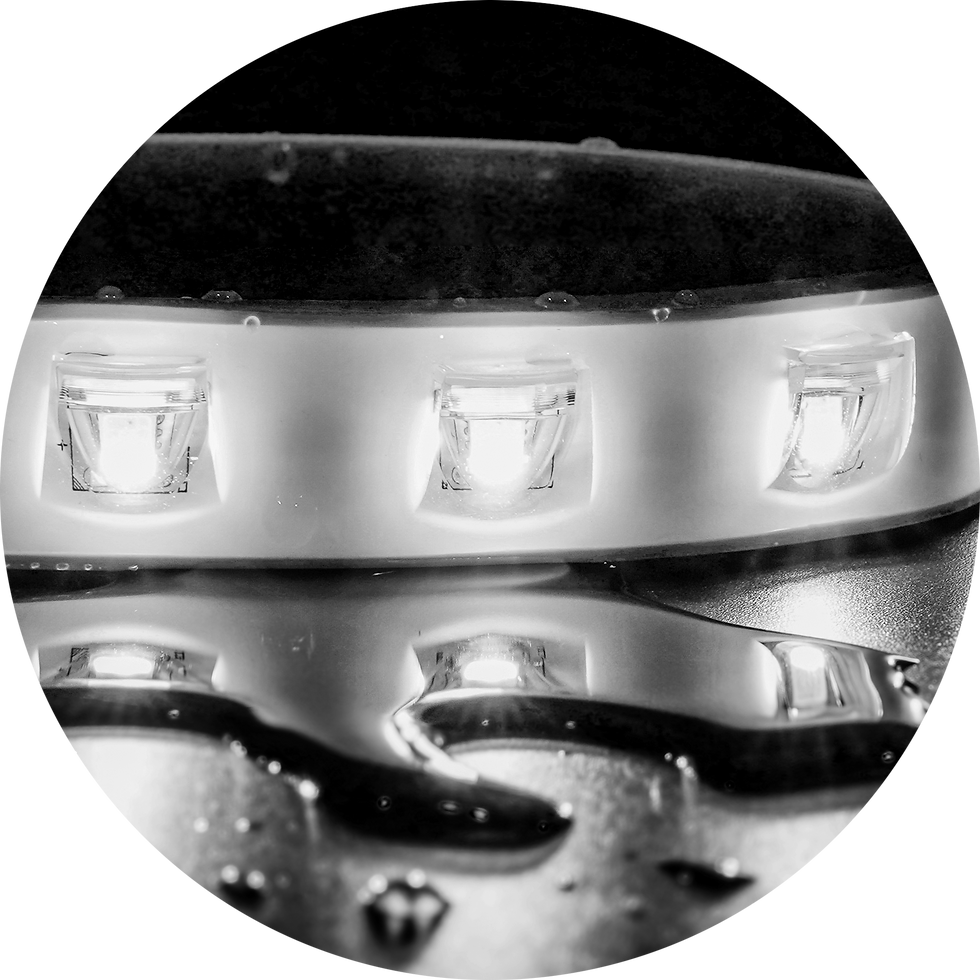

IP66
Wash Effect
Light Dispersion
70° X 110°
Gallery
Video
Housing:
Housing Coating:
IP Rating:
Fastening System:
Beam Angle:
Power Connection:
Specifications
Mechanical specifications:
Electrical specifications:
Housing:
Housing Coating:
IP Rating:
Fastening System:
Beam Angle:
Power Connection:
Aluminum
Powder Coated Matt Black.
IP65
2 position Conical Mounting System
120o
Customized Seetronic SE8FDYH-64-B
(RJ45 in and out)
Light Source:
Color Temp White:
Drive Method:
SMD 5050 R,G,B,WW
3000K (White Emitter only)
Constant Voltage
Control System:
Dimensions:
Control Protocols:
Channel Modes:
Driver Compatibility:
DMX 512, driver controlled
Mode 1:4 Channel mode
Mode 2:7 Channel mode
Tetra Driver 4
Tetra Driver 16
DMX 512, driver controlled
Mode 1:4 Channel mode
Mode 2:7 Channel mode
Tetra Driver 4
Tetra Driver 16
Fixture Size:
03FT X 50mm X 51mm
04FT X 50mm X 51mm
05FT X 50mm X 51mm
08FT X 50mm X 51mm
10FT X 50mm X 51mm
01MT X 50mm X 51mm
02MT X 50mm X 51mm
03MT X 50mm X 51mm
Watts:
15W
20W
26W
42W
53W
16W
34W
52W
Weight:
3.19lb
4.75lb
5.84lb
8.26lb
9.92lb
4.09lb
6.83lb
8.82lb
......
Control systems:
Control protocols:
DMX channels:
Control options:
Display:
DMX512
2 modes of operation
Mode 1: 17 channel mode
Mode 2: 21 channel mode
Individual pixel control, RDM
LCD Display
Housing:
Power connection:
Signal connection:
Pan:
Tilt:
Shutter:
Strobe:
Prism 1:
Prism 2:
Animation effect:
Gobo rotation:
Focus:
Color:
Tilt and rotation lock:
Fastening system:
Specifications
Mechanical specifications:
Housing:
IP Rating:
Mounting System:
Power Connection:
Housing Type:
Curving Type:
Length:
Cuttable:
LED Spacing:
Control System:
Control Protocols:
Channel Modes:
TPU Base, PU glue fill
IP66
6 Mounting Clips (included) 3M Temporary Mounting Tape
5 Conductor Cable
Lensed flex unit
Vertical Bending (max 200mm)
5 meters
165mm
1.09” in (27.8mm)
DMX 512 (Via CV4)
2 Modes of Operation
4 channel: R, G, B, WW
7 channel: R, G, B, WW, Strobe, Macro
Electrical specifications:
LED Type:
LED Qty:
Each LED Watts:
Warm White CCT:
Warm White CRI:
Lumens (Single LED):
Beam Angle:
Power Input:
Total Max Power:
Drive Method:
Dimensions:
Housing:
IP Rating:
Mounting System:
Light Angle:
Head Possition:
Rear Mounted LED
Connection:
Fixture size:
Fixture weight:
Packaged size:
Packaged weight:
SMD 5050 R, G, B, WW
210
.45
3014K
83
44lm
70 X 110
DC 24V
90W
Constant Voltage
240.5” X 0.78” X .45”
6108.7 X 20 X 11.5mm
2lb 4oz 1.02kg
15.35” X 15.35” X 1.58”
389.89 X 389.89 X 38.1cm
2.87lb 1.30kg
