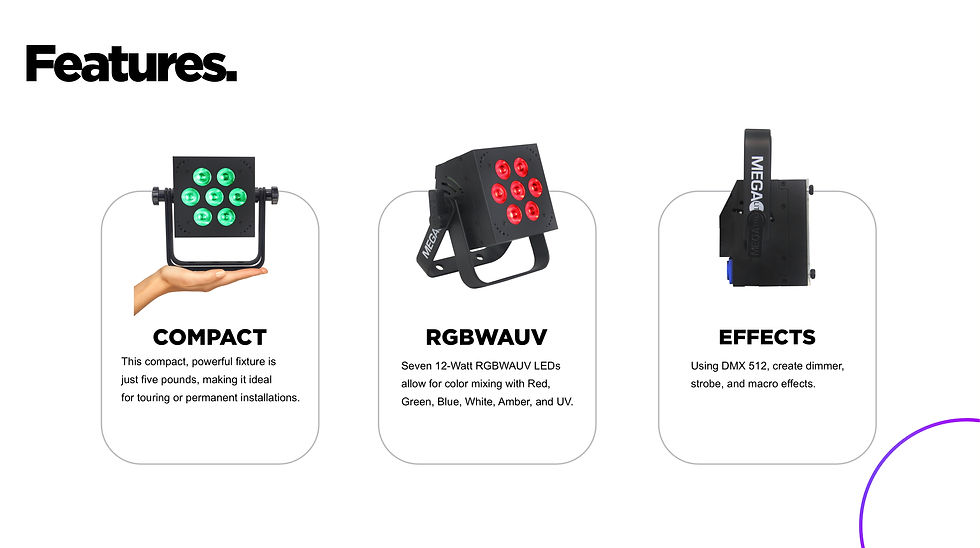

Features
This compact, powerful fixture is just five punds, making it ideal for touring or permanent installations.
compact
Seven 12 W RGBWA UV LEDs allow for color mixing with red, green, blue, white, amber and UV.
EFFECT
RGBWA UV
Using DMX512, create dimmer, strobe and macro effects.
Gallery
Video
Specifications
Mechanical specifications:
Power connection:
Signal connection:
LED angle:
Diffusion angle:
Fastening system:
Control systems:
Control protocols:
Channel modes:
Display:
Powercon type in and out
5 pin XLR connectors in and out
20°
25°
Double mounting yoke
DMX 512
5 Modes of operation
Mode 1: 3 Channel mode
Mode 2: 4 Channel mode
Mode 3: 6 Channel mode
Mode 4: 7 Channel mode
Mode 5: 9 Channel mode
Digital
Electrical specifications:
Light source:
Color temperature:
CRI (warm white):
Lumen output:
Power supply:
Power consumption:
Dimensions:
Fixture size:
Fixture weight:
Packaged size:
Packaged weight:
7 x 12W RGBWAUV LEDs
6829K
75 @full
1660 lm
110V-240V 50/60Hz
57 Watts | .77 Amps
8.12” X 4.30” X 7.63”
(20.6cm X 10.9cm X 19.3cm)
5 Ib (2.26 kg)
10” X 9.25” X 6.5”
(25.4cm X 23.4cm X 16.5cm)
7 Ib (3.17 kg)
