Description

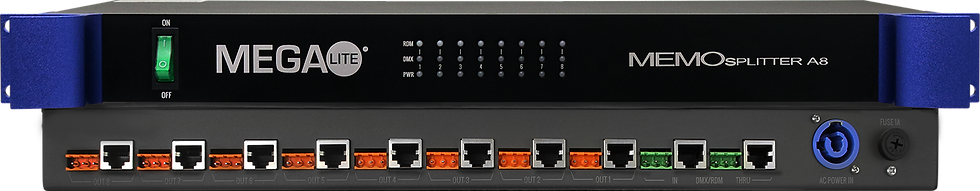

The MEMO Splitter A8 is designed for architectural installation applications and is the ultimate DMX signal amplifier, distributor, and supports bidirectional RDM signal. This powerful device empowers lighting professionals to split a single universe signal into eight separate outputs while boosting its signal strength, ensuring communication between controllers and DMX lighting fixtures.
Ideal for live events, concerts, architectural lighting, and more, the MEMO Splitter A8 empowers you to achieve complex lighting arrangements with ease. Improve signal integrity and take full advantage of RDM features for greater control over your lighting fixtures. Upgrade your lighting setups today and experience unparalleled precision and reliability like never before.
Elevate your lighting fame with the MEMO Splitter A8.
Features
This versatile device features one input and a remarkable eight outputs, allowing you to effortlessly split and boost you DMX signal for extensive cable runs between DMX lighting fixtures.
8 OUTPUTS
Benefit from the added advantage of Remote Device Management (RDM) signal regeneration. The MEMO Splitter A8 restores and stabilizes RDM signals, allowing you to maintain constant control and monitoring of your DMX lighting fixtures.
RDM
Benefit from enhanced reliability with electronic isolation between DMX connections. This feature protects your equipment from potential electrical interference and ensures smooth signal distribution.
ISOLATION
Video
Specifications
Mechanical Specifications:
Input DMX connections:
Output DMX connections:
Power connections:
Fastening systems:
Control Systems:
RDM:
DMX-512:
Universes:

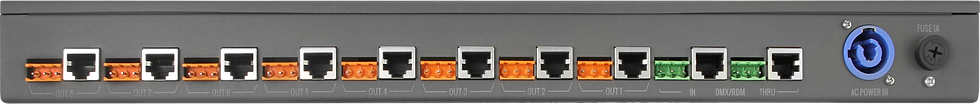

In and Thru RJ45 & In and Thru 3
Port Screw Terminal
8 Output RJ45 & 8 Output 3 Pin
Screw Terminal (Can only use one
type At A Time)
PowerCon type (PowerCon to
Nema 5-15 Cable included)
1U Rack Mountable front or back & Wall Mountable (Hardware included)
Yes
Yes
Single universe
Electrical Specifications:
Outputs:
Input Isolation:
RDM signal:
Signal lines:
Display:
Compliant:
Power consumption:
Power input:
Dimensions:
Fixture Size:
Fixture Weight:
Packaged Size:
Packaged Weight:
Eight (8)
Yes
Boost, Repeat Cleans and Regenerates
RDM Signal
Prevents Reflection
LED Signal Indicators
RDM E 1.28
.6 Amps @ 110V AC 60Hz
90 - 120AC 60Hz.
19" x 7.25" x 1.75"
6 lbs.
21.6" x 9.5" x 3"
7 lbs.
