Deco Line brings smart technology to any space — effortlessly. Featuring intuitive lighting controllers and low-voltage LED fixtures, this system is designed for easy integration in homes, hotels, and commercial environments.
Description
The Kroma 3 is a 9-watt RGBWW fixture in the DECO line, powered by constant voltage. It connects via a low-voltage 24VDC RJ45 cable for easy installation. The in-and-out Y connector supports daisy-chaining up to 13 units with the CV4, or up to 48 units with the CV24, with every two units forming a pixel for project animation. The advanced LED configuration enhances color shifting and delivers a CRI above 90. Its simple connection suits both new and remodel construction, and it can serve as an ambient, task, or accent fixture. Kroma 3 is compatible with other DECO products, including ribbons, pendants, and LSD (Light and Sound Deco) units. It fits a 2.83-inch cutout and installs easily with built-in clips.
Description

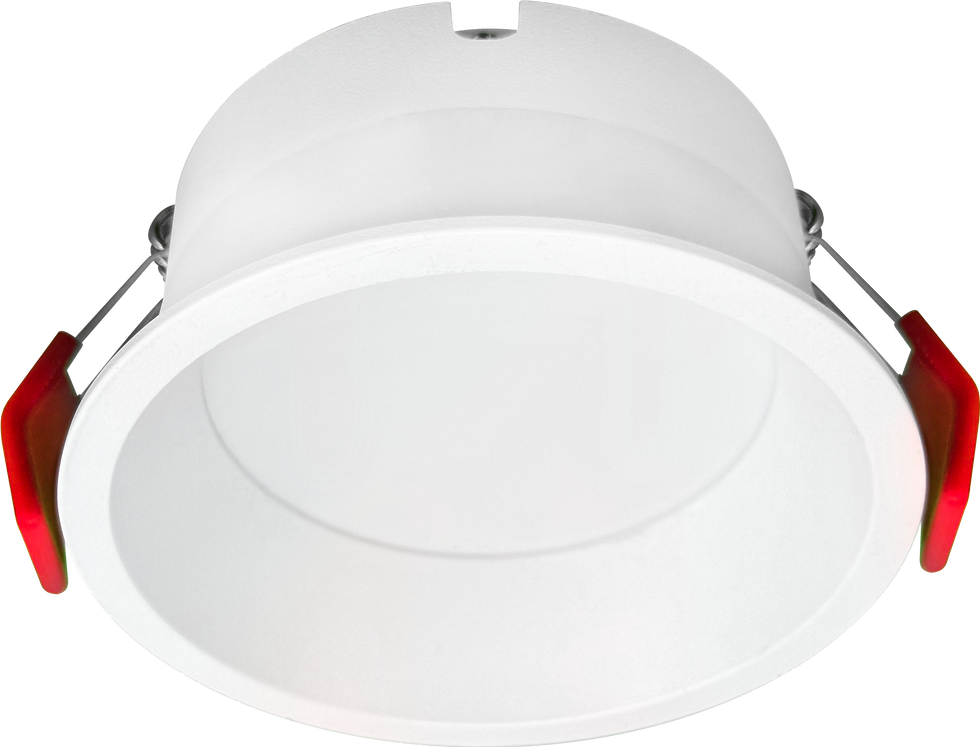

The Kroma 4 is a 12-watt RGBWW fixture in the DECO line, powered by constant voltage. It connects via a low-voltage 24VDC RJ45 cable for easy installation. The in-and-out Y connector supports daisy-chaining up to 8 units with the CV4, or up to 24 units with the CV24, with each unit acting as a pixel for project animation. The advanced LED configuration enhances color shifting and provides a CRI above 90. Its simple connection is suitable for both new and remodel construction, and it functions as an ambient, task, or accent fixture. Kroma 4 is compatible with other DECO products, including ribbons, pendants, and LSD (Light and Sound Deco) units. It fits a 3.54-inch cutout and installs easily with built-in clips.
Description
The Kroma 5 is a 24-watt RGBWW fixture in the DECO line, powered by constant voltage. It connects via a low-voltage 24VDC RJ45 cable for easy installation. The in-and-out Y connector allows daisy-chaining up to four units with the CV4. The advanced LED configuration enhances color shifting and provides a CRI above 90. Its simple connection is suitable for both new and remodel construction, and it functions as an ambient, task, or accent fixture. Kroma 5 is compatible with other DECO products, including ribbons, pendants, and LSD (Light and Sound Deco) units. It fits a 4.8-inch cutout and installs easily with built-in clips.
Description

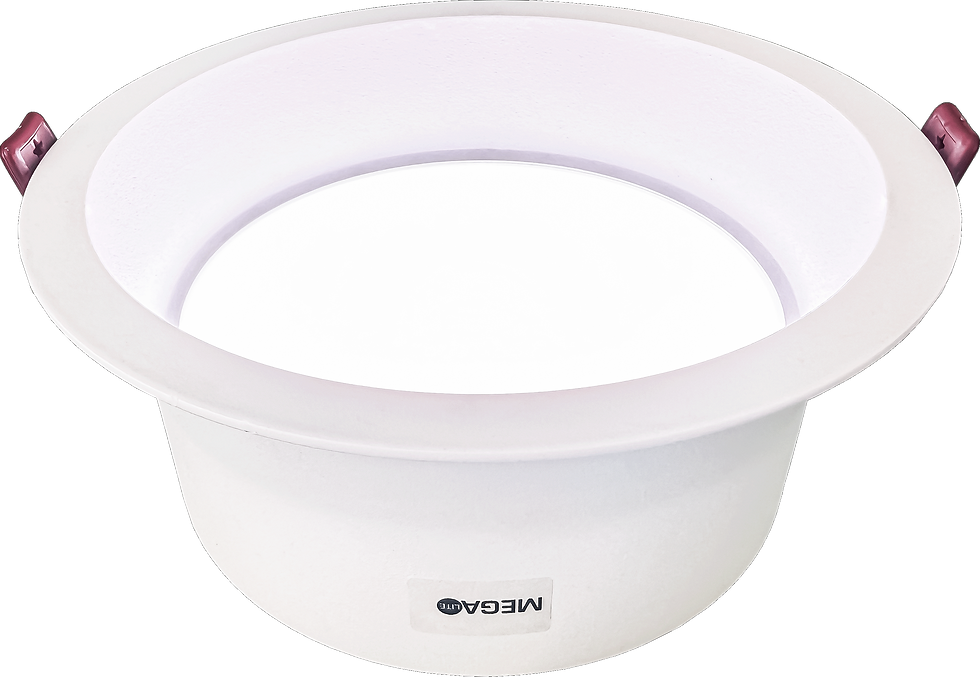

The Kroma 6 is a 32-watt RGBWW fixture in the DECO line, powered by constant voltage. It connects via a low-voltage 24VDC RJ45 cable for easy installation. The in-and-out Y connector allows daisy-chaining up to three units with the CV4. The advanced LED configuration enhances color shifting and provides a CRI above 90. Its simple connection is suitable for both new and remodel construction, and it functions as an ambient, task, or accent fixture. Kroma 6 is compatible with other DECO products, including ribbons, pendants, and LSD (Light and Sound Deco) units. It fits a 6.10-inch cutout and installs easily with built-in clips.
Features
Easy installation
Greater than
Deco line integration
Modern design
The advanced LED configuration enhances color shifting and provides a CRI above 90.
Gallery
Mechanical specifications
Housing: Die-cast aluminum
IP Rating: IP20
Mounting System: 2 spring mounts
Light Angle: Beam Angle 90
Connection: Cable-mounted RJ45 in and out
Hole Size: 2.83” / 72mm
Electrical specifications
LED Type: SMD 5050, R, G, B, WW
Warm White CCT: 2700K
Warm White CRI: 90<
Power Input: DC 24V
Drive Method: Constant Voltage
Total Max Power: 9W
Control System
Control Protocols: DMX 512 (Via CV4&CV24)
Channel Modes: 2 Modes of Operation
4 channel: R, G, B, WW
7 channel: R, G, B, WW, Strobe, Macro
Size and weight
Fixture Size: 3.23” X 3.23” X 2.01”
(82 X 82 X 51mm)
Fixture Weight: .45lb (0.20kg)
Packaged Size: 3.5” X 3.5” X 3.5”
(88.9 X 88.9 X mm)
Packaged Weight: .55lb (0.24kg)
Mechanical specifications
Housing: Die-cast aluminum
IP Rating: IP20
Mounting System: 2 spring mounts
Light Angle: Beam Angle 90
Connection: Cable-mounted RJ45 in and out
Hole Size: 3.54” / 90mm
Electrical specifications
LED Type: SMD 5050, R, G, B, WW
Warm White CCT: 2700K
Warm White CRI: 90<
Power Input: DC 24V
Drive Method: Constant Voltage
Total Max Power: 15W
Control System
Control Protocols: DMX 512 (Via CV4&CV24)
Channel Modes: 2 Modes of Operation
4 channel: R, G, B, WW
7 channel: R, G, B, WW, Strobe, Macro
Size and weight
Fixture Size: 4.06” X 4.06” X 2.24”
(103 X 103 X 57mm)
Fixture Weight: .60lb (27.21kg)
Packaged Size: 4.5“ X 4.5“ X 3.5“
(114 X 114 X 114.3mm)
Packaged Weight: .8lb (3.6kg)
Mechanical specifications
Housing: Die-cast aluminum
IP Rating: IP20
Mounting System: 2 spring mounts
Light Angle: Beam Angle 90
Connection: Cable-mounted RJ45 in and out
Hole Size: 4.8” / 122mm
Electrical specifications
LED Type: SMD 5050, R, G, B, WW
Warm White CCT: 2700K
Warm White CRI: 90<
Power Input: DC 24V
Drive Method: Constant Voltage
Total Max Power: 24W
Control System
Control Protocols: DMX 512 (Via CV4&CV24)
Channel Modes: 2 Modes of Operation
4 channel: R, G, B, WW
7 channel: R, G, B, WW, Strobe, Macro
Size and weight
Fixture Size: 5.24” X 5.24” X 2.36”
(133 X 133 X 60mm)
Fixture Weight: .95lb (0.43kg)
Packaged Size: 5.75“ X 5.75“ X 3.75“
(146 X 146 X 146mm)
Packaged Weight: 1.1lb (0.49kg)
Mechanical specifications
Housing: Die-cast aluminum
IP Rating: IP20
Mounting System: 2 spring mounts
Light Angle: Beam Angle 90
Connection: Cable-mounted RJ45 in and out
Hole Size: 6.10” / 155mm
Electrical specifications
LED Type: SMD 5050, R, G, B, WW
Warm White CCT: 2700K
Warm White CRI: 90<
Power Input: DC 24V
Drive Method: Constant Voltage
Total Max Power: 32W
Control System
Control Protocols: DMX 512 (Via CV4&CV24)
Channel Modes: 2 Modes of Operation
4 channel: R, G, B, WW
7 channel: R, G, B, WW, Strobe, Macro
Size and weight
Fixture Size: 6.54” X 6.54” X 3.23”
(166 X 166 X 82mm)
Fixture Weight: .1.55lb (0.7kg)
Packaged Size: 7.5“ X 7.5“ X 4.25“
(190 X 190 X 190mm)
Packaged Weight: .1.7lb (0.77kg)
Specifications
Resources
Features
The device features four RJ45 outputs ports, designed to efficiently transmit control signals to the Deco Line lighting fixtures ensuring seamless integration and reliable performance in professional lighting setups.
FOUR RJ45 OUTPUTS
Using this function allows you to wirelessly control your DMX connected fixtures using a wireless DMX Connection.
IP65:
WIRELESS DMX:
Resistant to water and protected from dust, this unit is perfect for outdoor venues and events.
The power of DMX, CABLE-FREE
Video
Specifications
Mechanical specifications:
IP Rating:
Housing:
Power connection:
Signal connection:
Wireless DMX connection:
Output connection:
Cooling:
Fastening system:
Display:
Control & programming
Control protocols:
Channel modes:
Operating mode:
IP65
Aluminum extrusion
Seetronics SAC3FX IP-rated
connection (Nema 5-15 cable included)
5-Pin XLR In and Out
Lumen Radio wireless DMX connection receiver
4 X RJ45 Outputs
Internal fan
M10 Clamp mount thread, mounting holes accessory DIN rail mounts
Digital
DMX 512
5 Modes of operation:
Mode 1: 1 Channel mode Dimmer
Mode 2: 3 Channel mode Warm, white, cool white
Mode 3: 3 Channel mode R,G,B
Mode 4: 4 Channel mode R,G,B, W
Mode 5: 7 Channel mode Dimmer, R,G,B, W, strobe, Macro
17 Pre programs manual settings via display
Electrical specifications:
Output ports:
Power per port:
Refresh:
Drive Method:
Power consumption:
Power supply:
Power input:
Output;
Dimensions:
Fixture Size:
Fixture Weight:
Packaged size:
Packaged weight:
4 Ports:
96W
4,000Hz
Constant voltage
3.29 Amps / 384 Watts
Electronic: Mean Well UHP-500-24
90-264V AC 50/60Hz
24V DC
13.25" X 9.5" X 4.12"
(33.65 cm X 24.13 cm X 10.46 cm)
8.8 lbs (3.9 kg)
14.75” X 12” X 6.75”
(37.46 cm X 30.48 cm X 17.14 cm)
9.8 lbs (4.4 kg)
