Description:

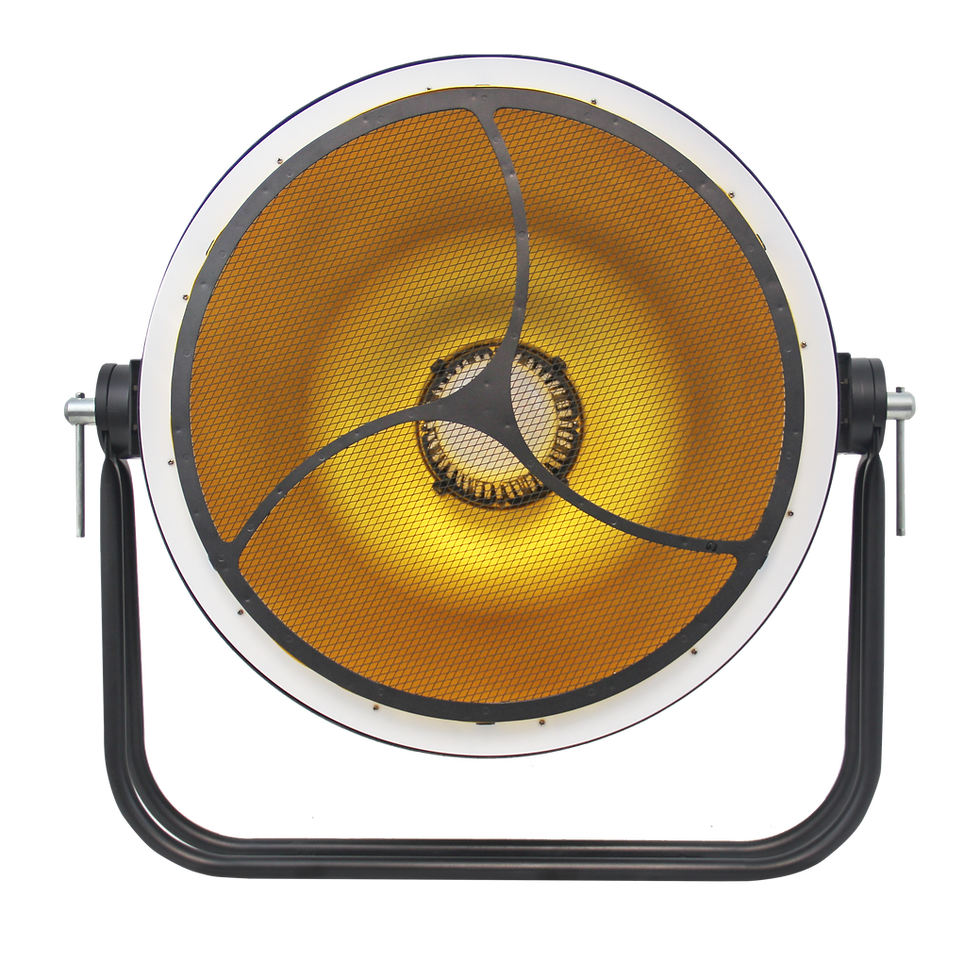

The Circa XL Scoop XL 24"Ø is a circular fixture with a retro look, yet its four light sources provide a modern twist to the scoop. Providing an art deco circa 1900 look to the fixtures. The unit comes with a center sphere light source providing a warm glow of Tunable white light. It sits on an octagon pyramid heatsink with 8 clusters of LEDs reflected from its base. A segmented ring trims its edge divided into eight RGB pixels. White LEDs were placed behind its protective grill to illuminate the hand-finished gold reflective scoop.
Whether placed atop a stand, on the floor or rigged, this unique fixture can make any band or performer stand, bringing depth and illuminating the stage as no other light can
It is also available in three other sizes: giant 45"Ø, Regular 22"Ø, and the XS 10”°Ø, which is slightly different in its control.
Features
LEDS
Segment Control
Unique Effects
The Circa XL Scoop LED has 464 RGB, 108 WW, and 60 WW + AMBER.
The Circa XL Scoop LED has eight segments of control for the inner and outer rings which you can use to create incredible effects.
The Circa XL Scoops independent control of dimmer, macro, and strobe effects can be used to create a multitude of unique effects.
Specifications:
Mechanical specifications:
Housing:
Power Connection:
Signal Connection:
LED Angle:
Scan Rate:
Segments:
Fuse:
Fastening System:
Control systems:
Control Protocols:
Channel Modes:
Display:
Sheet Metal
Powercon type panel input
3 & 5 Pin XLR in and out panel mounted
140° (Outer ring)
7000Hz
8 outer segments, 8 inner segments
5X20 F5AL250V
Square yoke, 1 quick-release clamp mount
DMX 512, Display Control
5 Modes of operation
Mode 1: 2 Channel mode
Mode 2: 3 Channel mode
Mode 3: 17 Channel mode
Mode 4: 52 Channel mode
Mode 5: 55 Channel mode
Digital
Electrical specifications:
Light Source:
Power Supply:
Power Consumption:
464 RGB 108 warm white 60 warm white + amber LEDs
Electronic auto switching 110V-240V
50/60Hz
Watts: 528 Amps: 4.57
Dimensions:
Fixture Size:
Fixture Weight:
Packaged Size:
Packaged Weight:
28” X 14” X 26.5”
(11.02cm X 5.51cm X 10.43cm)
27 lbs (12.24kg)
32.5” X 18.5” X 30”
(12.79cm X 7.28cm X 11.81cm)
35.5 lbs (16.10kg)
