Description

Total Control Radio DMX Logo (White with black Control)_edited.png

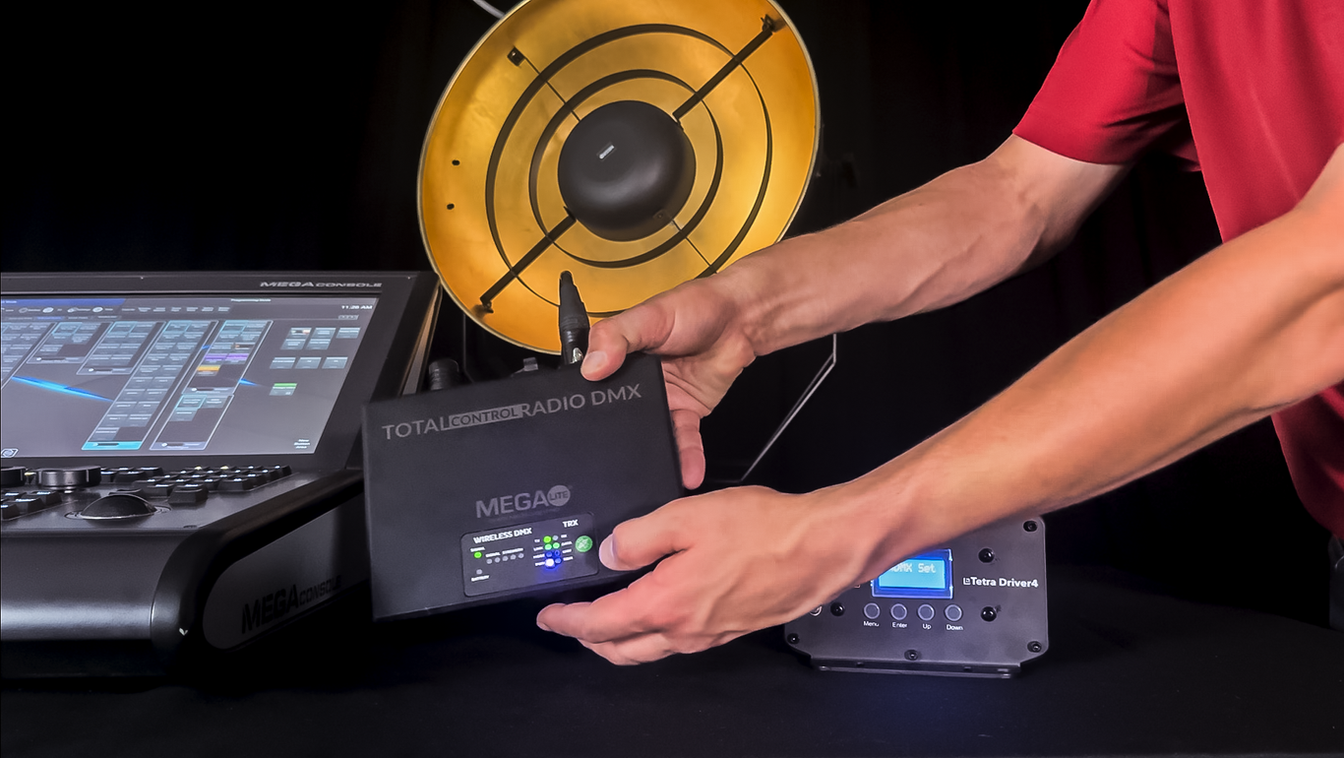

The Total Control Radio DMX Transceiver is designed for effortless setup, eliminating the need for lengthy cables. It supports a single universe of DMX with an impressive range of up to 100 meters. Its user-friendly design ensures quick and easy control, with each unit capable of functioning as either a receiver or a transmitter.

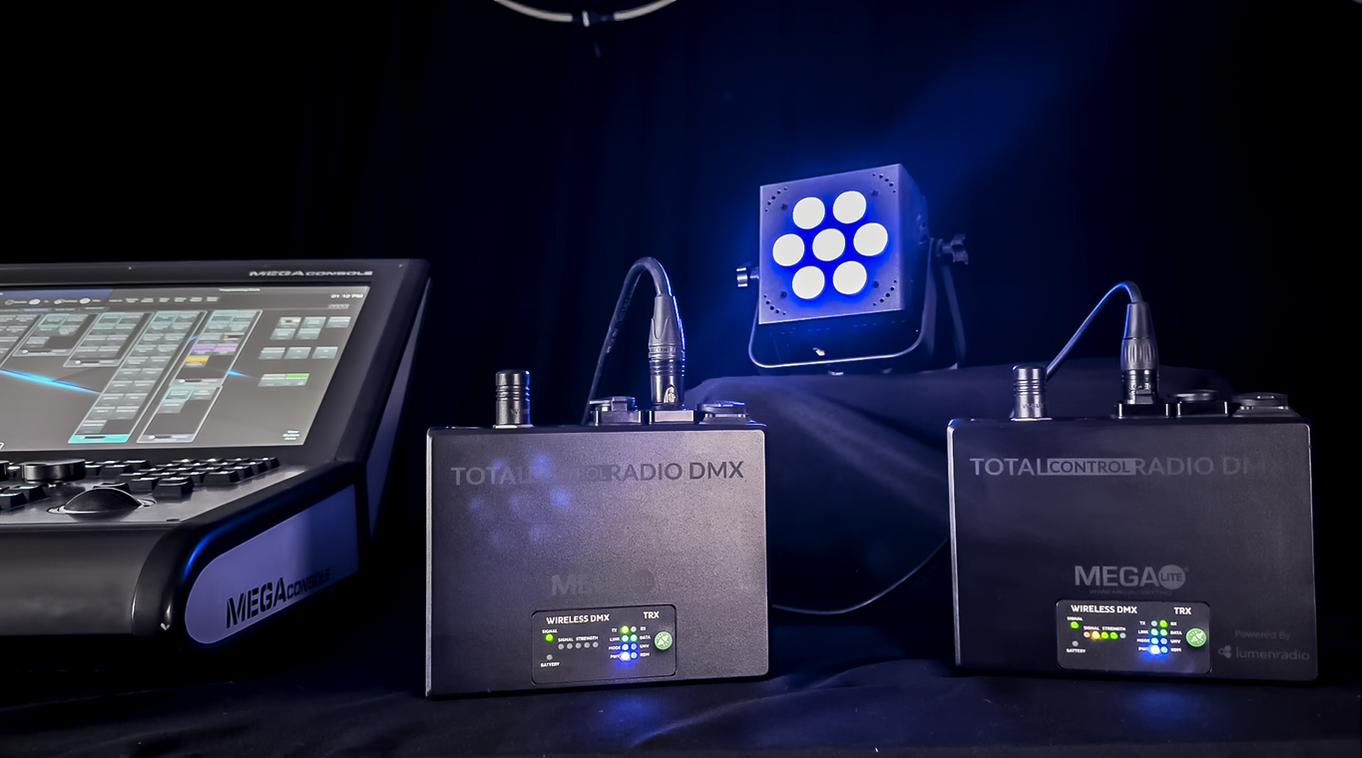

You will need two units—one to serve as a transmitter (TX) and the other as a receiver (RX). Additionally, you can connect it with fixtures using the Lumen Radio receiver-ready integrated.

Keep your show running smoothly with a remarkable battery life of up to 88 hours (when new), providing uninterrupted power. The device is fully protected against dust and low-pressure water jets from any direction, making it reliable in various environments. The radio DMX transceiver can be used in installations with flexible mounting options or stacking capabilities. You can attach a clamp directly to the unit or use a quick-release clamp for production or truss mounting.

Features

The device is fully protected against dust and low-pressure water jets from any direction, making it reliable in various environments.

TOTAL CONTROL RADIO DMX_Angle 2.png
TOTAL CONTROL RADIO DMX ANGLE2.png

IP65 Rating:

TOTAL CONTROL RADIO DMX_Left Side.png

The user-friendly design allows for quick and easy control. Each unit can function as either a receiver or a transmitter. You will need two units—one to act as a transmitter and one as a receiver (RX). Alternatively, you can connect with existing Lumen Radio devices.

Intuitive Integration:

Multiple Mounting
Options:

Utilize the unit in installations with flexible mounting options or stacking capabilities. You can attach a clamp directly to the unit or use a quick-release clamp for production or truss mounting.

Total Control Radio DMX Logo (White with black Control).png
TC radio Dmx .png
4 dmx.png

The power of DMX, CABLE-FREE

Gallery

fondo video.png

Videos

5.2 &5.8 GHz wW-DMX G3 &G4

compatible 2.4 GHz Normal

mode 100mW,

2.4 GHz Maximum Power 450mW

126 Channels using frequency

hopping

technology - AFHSS

Adaptive

Up to 32 Universes simultaneously

5dBi Max

Up to 100 Meters (Outdoor prime

operating environment)

<5ms

Up to 88 Hours

2.5 Hours

.35A @ 110v AC or .2A @ 240v AC

100-250V AC 50-60Hz

DMX 512, RDM

Power Indicator & Connection Status

This device complies with part

15 of the FCC rules.

IP65

Radio frequency used:



Frequency agile:
Universes:
Broadcast power:
Communication distance:

DMX Latency:
Battery run time:

Battery charge time:
Power consumption:
Power supply:
Signal protocol:
Display:
Compliant:

IP Rating:

Specifications

Mechanical specifications:

Housing:

Mounting System:

Power Connection:

Signal Connection:

Dimensions:

Fixture Size:

Fixture Weight:

Case Size:

Case Weight:

Included

1pc Total Control Radio DMX Transceiver / 1pc Power Cable /

1pc Quick Disconnect Clamp Mount / 1pc Wall Mount / 1pc Velcro Strap /

1pc User Manual.

Diecast aluminum

Quick Release Clamp Mount with two

13mm holes, M10 Hole, Wall mount,

Velcro Strap

Seetronics SAC3MPX-67 (Seetronics

black power connection SAC3MX-67 to
Nema 5-15 cable included)

XLR 5 pin Input and Output.

7.3" X 6.7" X 2.3"18.54 X 17.01  X 5.8cm

2.64lbs 1.19kg

11” X 11” X 4”27.94 X 27.94 X 10.16cm

5.5 lbs  2.49kg

Electrical specifications:

Radio frequency used:



Frequency agile:
Universes:
Broadcast power:
Communication distance:

DMX Latency:
Battery run time:

Battery charge time:
Power consumption:
Power supply:
Signal protocol:
Display:
Compliant:

IP Rating:

5.2 &5.8 GHz wW-DMX G3 &G4

compatible 2.4 GHz Normal

mode 100mW,

2.4 GHz Maximum Power 450mW

126 Channels using frequency

hopping

technology - AFHSS

Adaptive

Up to 32 Universes simultaneously

5dBi Max

Up to 100 Meters (Outdoor prime

operating environment)

<5ms

Up to 88 Hours

2.5 Hours

.35A @ 110v AC or .2A @ 240v AC

100-250V AC 50-60Hz

DMX 512, RDM

Power Indicator & Connection Status

This device complies with part

15 of the FCC rules.

IP65

5.2 &5.8 GHz wW-DMX G3 &G4 compatible 2.4 GHz Normal

mode 100mW, 2.4 GHz Maximum Power 450mW 126 Channels using frequency hopping technology -AFHSS

Adaptive

Up to 32 Universes simultaneously

5dBi Max

Up to 100 Meters (Outdoor prime operating environment)

<5ms

Up to 88 Hours

2.5 Hours

.35A @ 110v AC or .2A @ 240v AC

100-250V AC 50-60Hz

DMX 512, RDM

Power Indicator & Connection Status

This device complies with part15 of the FCC rules.

IP65
