Description

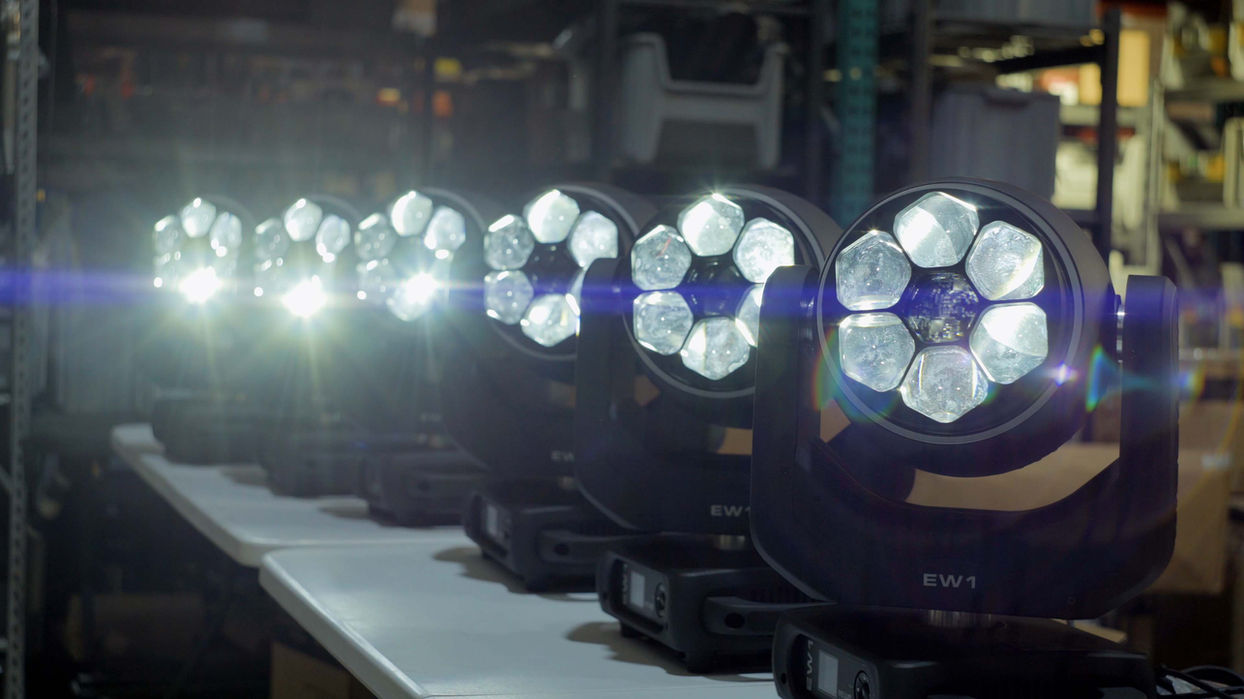

The EW1 Luminaire, a versatile tool for you lighting needs, is equipped with 7 x 60 Watts RGBW LEDs, each with individual control and a kaleidoscopic effect. This versatility empowers you to create a wide range of possible lighting scenes, giving you the freedom to bring your creative vision to life.
With its beam-to-wash element, eht EW1 luminaire is designed for adaptability, allowing it to be used as a beam or wash. Its outer ring adds another element of depth to fixture, giving you the flexibility to create unique lighting effects for any event.
The EW1 luminaire is not only compact and lite but also designed with your convenience in mind. It's easy to use, making it a perfect choice for professionals in the entertainment industry. The EB1, part of the series, is a hard-edge beam that pairs seamlessly with the EW1, ensuring a hassle-free setup.
Features
The EW1 is equipped with seven 60 Watt RGBW (red, green, blue and white) high intensity LEDs that provide a powerful beam and wash effect, which serves as a primary light, and has the ability to be pixelated pixel control (using the full DMX profile).
7 led of 60 watts
This unit offers an eye-catching Pixable Ring light with 62 x .%W RGB SMD LEDs. The basic profile has a pre-programmed effect and speed control, the full control gives better handling over the pixels.
4° to 36° zoom range
PIXABLE RING
Adapt to any stage with the EW1's versatile zoom range. With a 4° focused beam to illuminate specific elements or use as an areal beam and the 36° zoom can be used to cover large areas.
Gallery
Video
Specifications
Mechanical specifications:
Housing:
Mounting system:
Power connection:
Signal connection:
Zoom angle:
Control systems:
Control protocols:
RDM:
Channel modes:
Display:
Nynon plastic
2 quick-release clamp mounts
Input Seetronics SAC3MPA panel mount
Output Seetronics SAC3MPB panel mount
Cable Seetronics SAC3FCA plug to NEMA 5/15
3- and 5-pin XLR in and out (IP rated)
4° to 36° electronic zoom
DMX512
Yes, address, channel mode, pan invert, tilt invert, pan and tilt swap
2 modes of operation
Mode 1: 27 channel mode
Mode 2: 103 channel mode
Digital
Electrical specifications:
Light source:
Color temperature:
CRI (warm white):
Lumen output:
Power supply:
Power consumption:
Dimensions:
Fixture size:
Fixture weight:
Packaged size:
Packaged weight:
7 x 60 W RGBW OSRAM 62 x .5 W RGB
7562 K
72 @ full
7625 lm
Electronic 90-250 V AC, 50/60 Hz
382 Watts | 3.25 Amps | @110 V
15" x 9.37" x 19.37"
(38.1 cm x 23.79 cm x 49.19 cm)
32 lb (14.51 kg)
16.5" x 13.5" x 24.5"
(41.91 cm x 34.29 cm x 62.23 cm)
35.25 lb (15.98 kg)
