Description

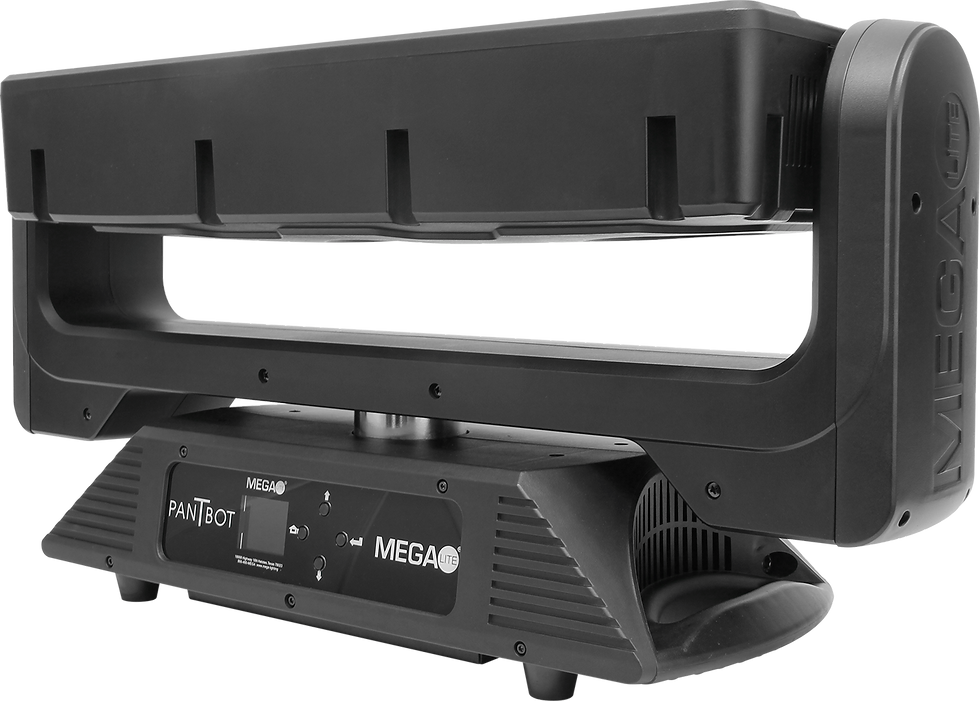

The Pan T Bot, named for being a rectangular fixture that can pan and tilt, is a versatile LED fixture with robust features that enable it to be used as a blinder, strobe, pixel effect and wash.
This unit has 960 0.5 W RGB LEDs and 300 white 1 W LEDs. The vibrant red, green and blue LEDs offer 80 segments of control that further enhance the user's creativity when programming. The blinding white LEDs can be used a strobe or divided into ten segments using pre-programmed macros. Both sections can be independently controlled or combined, allowing users to program a variety of eye-catching, radiant looks.
The RGB LEDs are pixe-mappable into 80 pixels in extended mode and offer the user ultimate flexibility in mapping the stage.
With its 270° 16 bit tilt and 540° 16 bit pan, the Pan T Bot lives up to its name. These unique movements of both pan and tilt enhance the effects of the unit, creating a multidimensional appearance that will intrigue you.
Features
In addition to the 270° 16 bit tilt, the Pan T Bot as itrs name entails also features a 540° 16 bit pan. This unique movement of both pan and tilt further enhance the effects of the unit by creating a multidimensional appearance.
pan & tilt
The RGB LEDs are fully pixel-mappable in extended mode and offer the user ultimate flexibility in bringing their version to life.
STROBE EFFECT
pixel effect
The blinding white LEDs can be used as a strobe or divided into 10 segments using pre-programmed macros.
Gallery
Video
Specifications
Mechanical specifications:
Power connection:
Signal connection:
Pan movement:
Tilt movement:
Lens angle:
Functions:
Macros:
Fastening system:
Control systems:
Control protocols:
RDM:
Channel modes:
Display:
Panel mounted PowerCon-type
power in /out
Panel mounted 3- and 5-pin XLR connectors in/out
Panel mounted RJ45 in and out
540° 8/16-bit
270° 8/16-bit
89° RGB amitters | 40° white emitters
Blinder, strobe and wash
Shutter, speed, color and white
2 quick-connect clamp mounts
DMX512, standalone 255 step dimmer setting via display auto pre-program via display.
Yes
2 modes of operation
Mode 1: 23 channel mode
Mode 2: 256 channel mode
Digital
Electrical specifications:
Light source:
Color temperature:
CRI (warm white):
Lumen output:
RGB pixel control:
White pixel control:
Power supply:
Power consumption:
Dimensions:
Fixture size:
Fixture weight:
Packaged size:
Packaged weight:
960 RGB 0.5 W | 300 white 1 W
6670 K
73
28,595 lm
80 RGB pixel control
10 white pixel control
Universal 100 - 240 V, 50/60 Hz
590 Watts | 5.04 Amps | @ 110V
24.5" x 7.6" x 14.5"
36 lb (16.33 kg)
27.36" x 9" x 17.25"
38.6 lb (17.5 kg)
