Outshine Lava Q380

Description:

The Outshine LAVA is a compact IP65-rated, high-power, pixable, strobe, wash fixture. Its twelve segments consist of groups of four 8W RGBW LEDs arranged

horizontally in a proprietary linear lens array that centers the LEDs between three lens types, creating an evenly spaced pattern and even wash coverage. Its 11 DMX modes allow simplified two-channel control or full pixel control with 58 channels of RDM DMX control. The fixture's 319W power makes it ideal for production applications or as a permanent outdoor architectural fixture. Its RGBW LEDs let you create a wide range of color saturations and include 2000 K to 10000 K CCT control, 4 built-in dimmer curves, tungsten mode, and multiple strobing options.

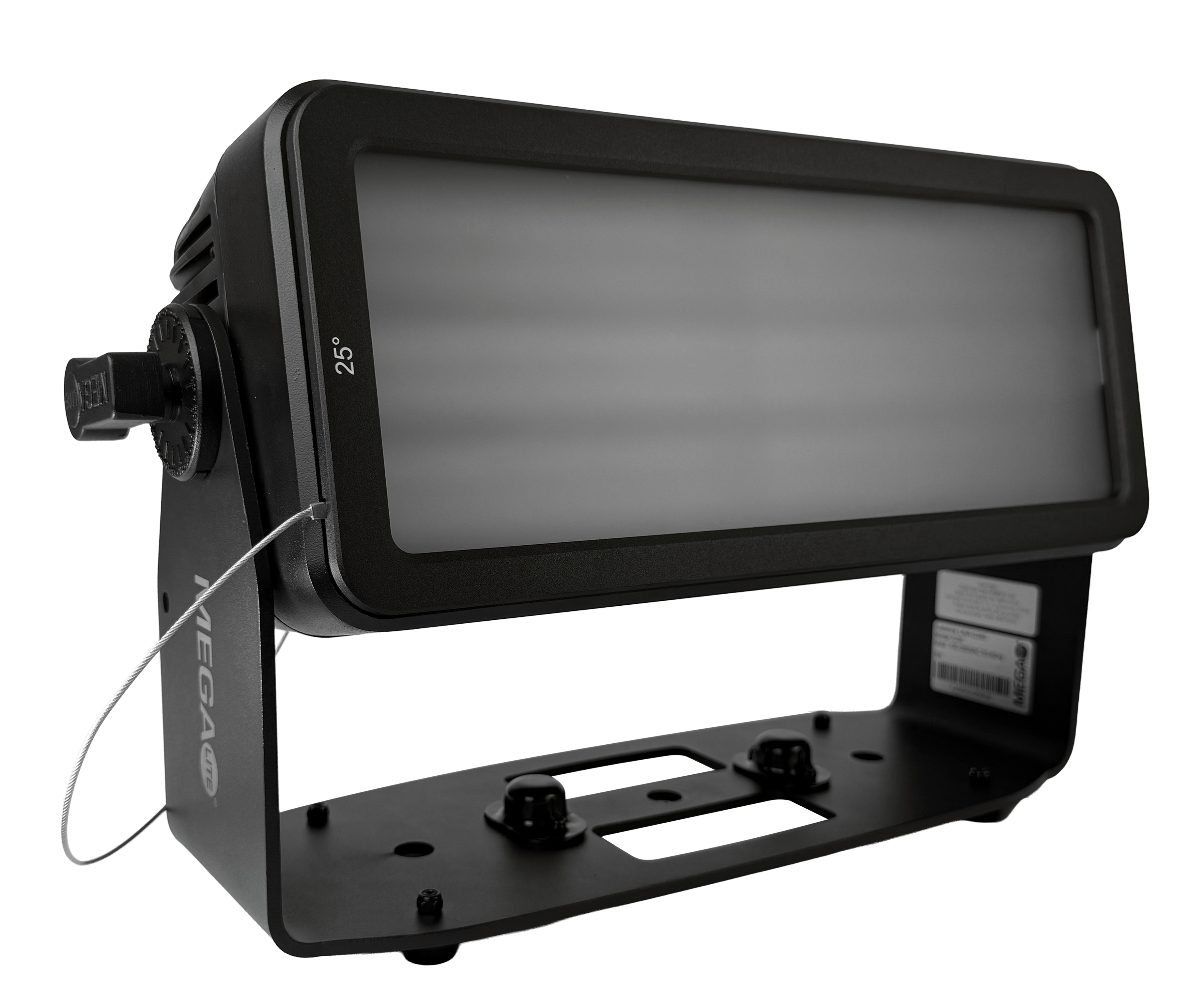

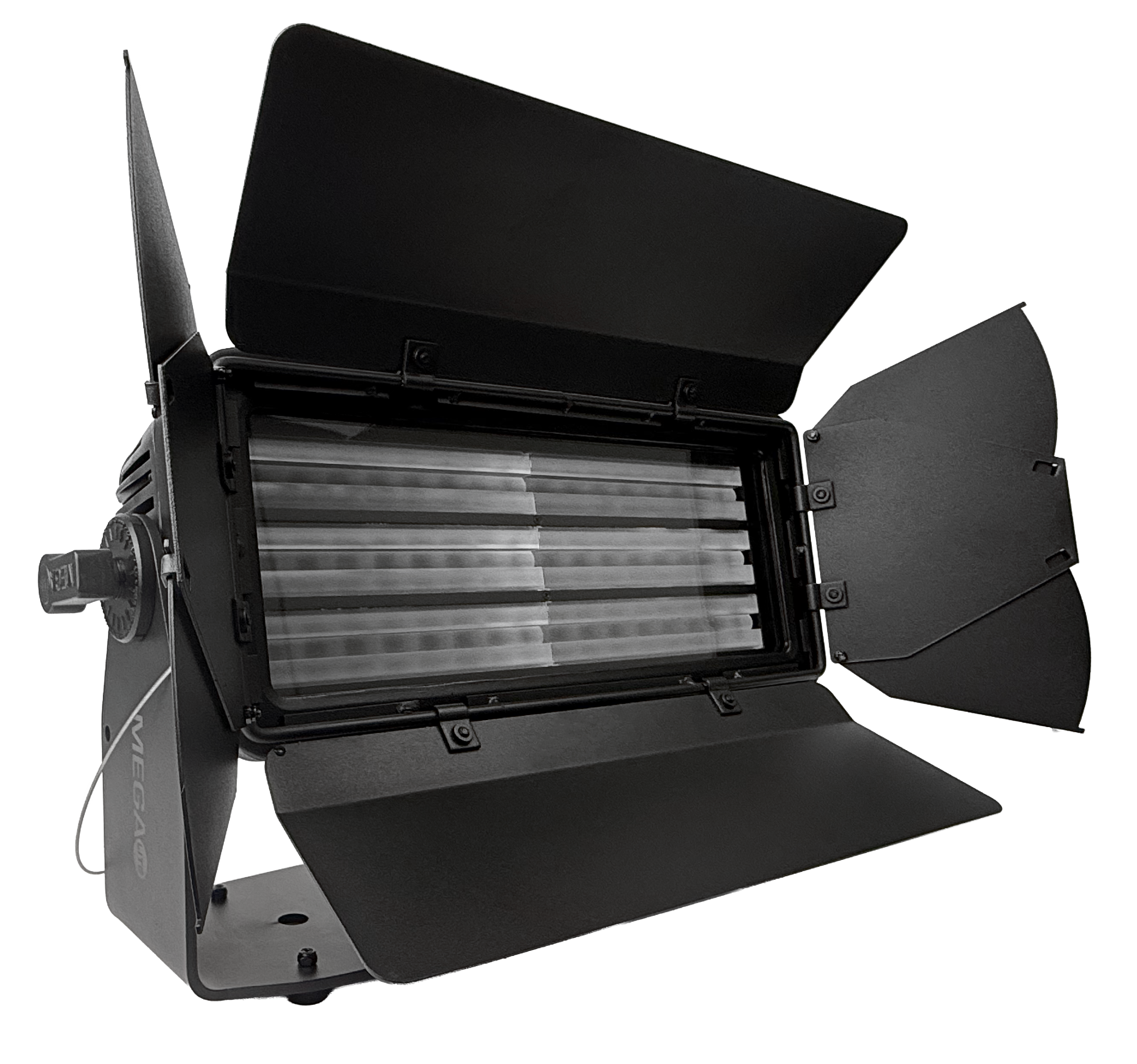

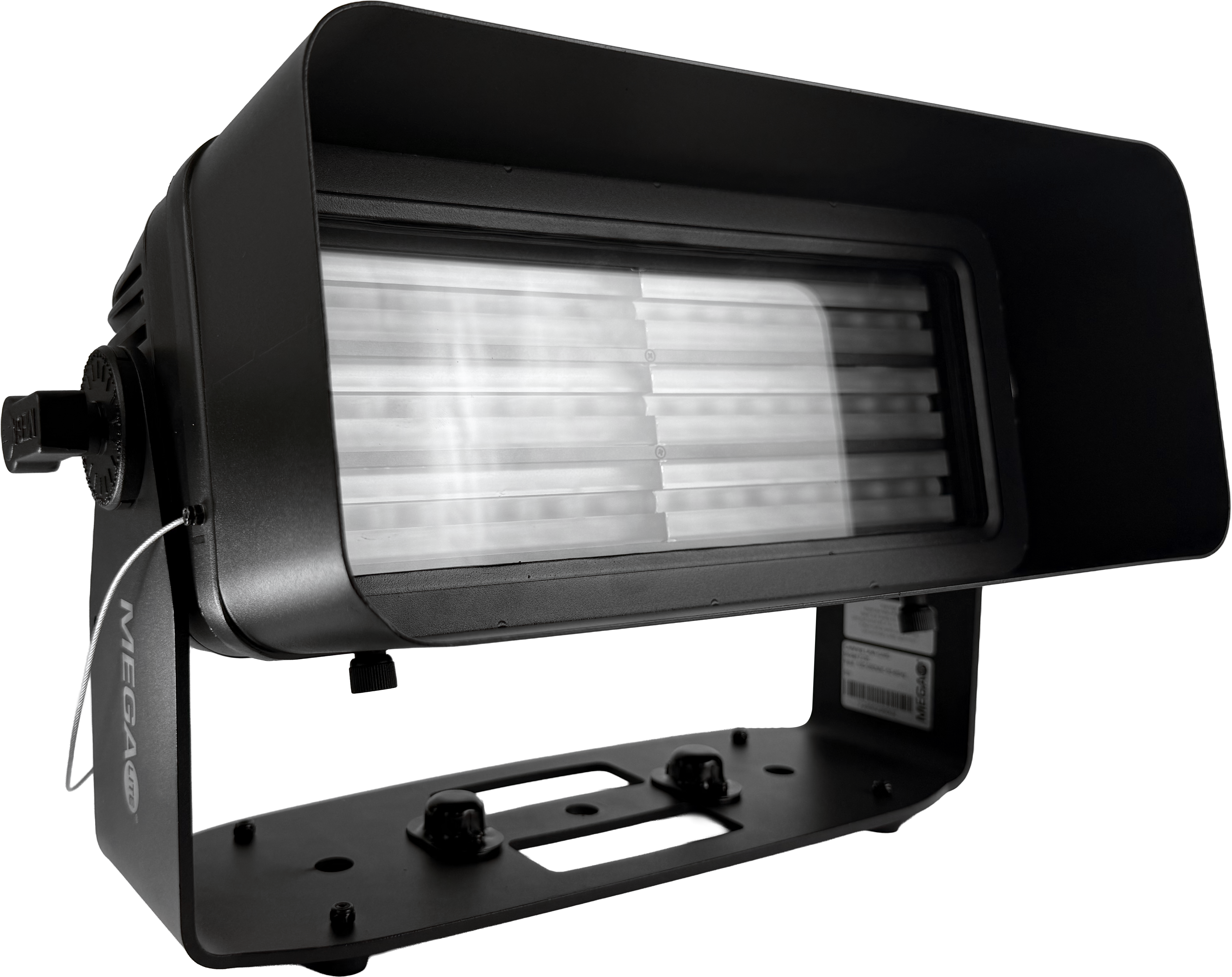

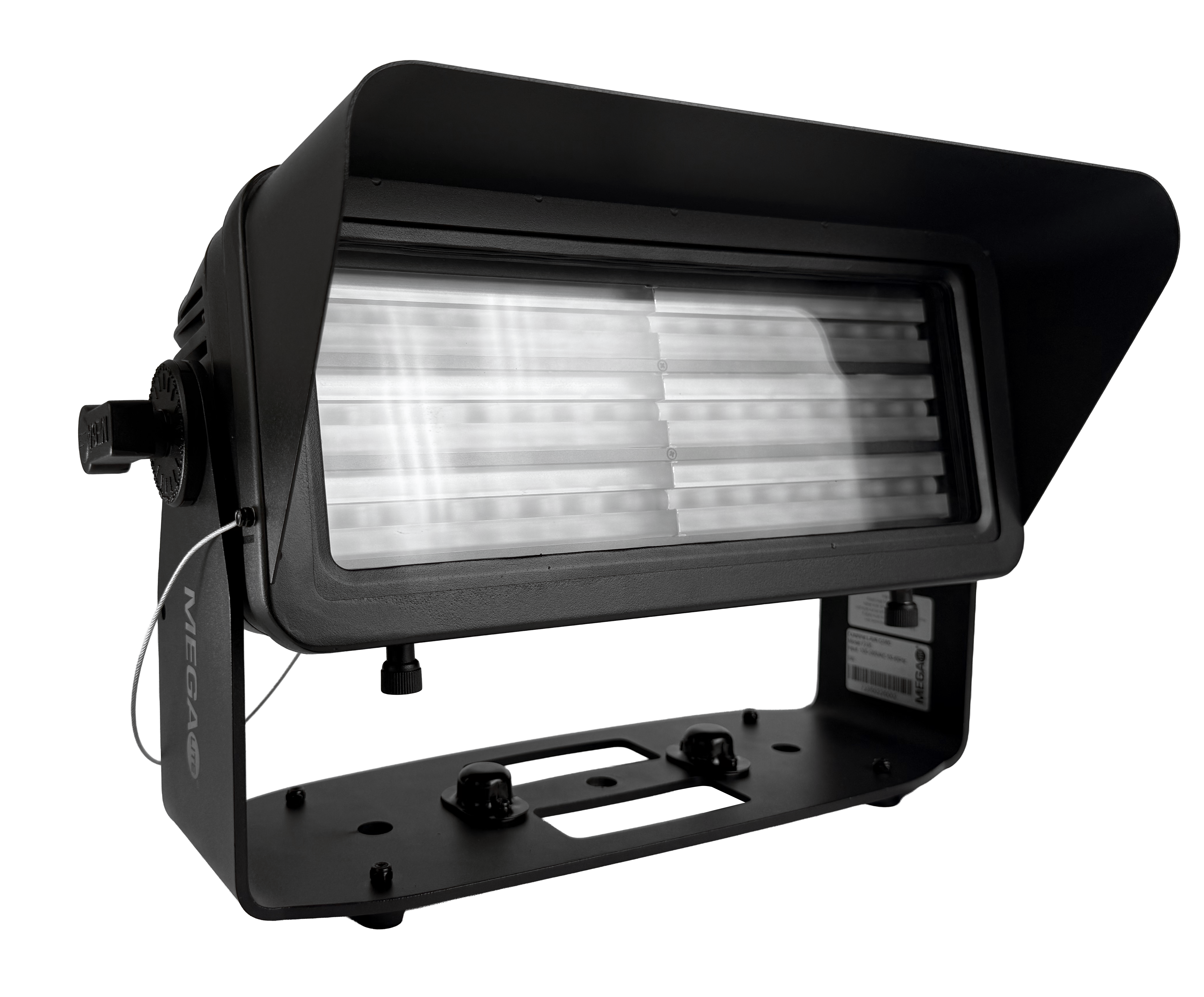

Its portable, modern design and multiple mounting holes enable quick, easy installation. It features multiple filter options via a quick magnetic mounting system. Barndoor, diffusion filter, and top hat accessories are also available to suit your design needs.

Excellent color mixing RGBW

Wide Coverage

Features:

IP65 outdoor rating

12-pixel control

Gobos

Static Gobos:

Rotating Gobos:

Examples:

Video

Gallery

5.2 &5.8 GHz wW-DMX G3 &G4

compatible 2.4 GHz Normal

mode 100mW,

2.4 GHz Maximum Power 450mW

126 Channels using frequency

hopping

technology - AFHSS

Adaptive

Up to 32 Universes simultaneously

5dBi Max

Up to 100 Meters (Outdoor prime

operating environment)

<5ms

Up to 88 Hours

2.5 Hours

.35A @ 110v AC or .2A @ 240v AC

100-250V AC 50-60Hz

DMX 512, RDM

Power Indicator & Connection Status

This device complies with part

15 of the FCC rules.

IP65

Light Source:

Power:

Power Consumption:

Power Link:

Housing:

Outdoor Rating:

Mounting System:

Power Connection:

Cable Input:

Signal Connection:

Color Mix:

Kelvin:

Pan & Tilt:

Zoom:

Static Gobo Wheel:

Rotating Gobo Wheel:

Prisms:

Frost:

Die-Cast Aluminum

IP-65

2 Quick Release Clamp Mounts

Input: Seetronics SAC3MPX-67

Output: Seetronics SAC3FPX-67-01

Nema 5-15 to SAC3FX-67

(cable included)

Input: Seetronics J5F2C-W-B-67

5 pin XLR

Output: Seetronics K5F2C-W-B-67

5 pin XLR

CMY Color Mixing

Variable Color Wheel from 3500k to 6800k

Pan 540° 3.2S Cycle Turn, Tilt 270°

3° to 21° Electronic Zoom

12 Gobo’s

7 Rotating Gobo’s

Prism 1 - 5 Facet Linear Prism

Prism 2 - 8 Facet Circular Prism

Frost Effect

400w LED

Electronic 90-250VAC 50/60Hz

427 Watts 3.55 Amps @ 120V

4 Units @ 120V

RDM parameters:

Operating mode:

Specifications

Mechanical specifications:

Housing:

Outdoor Rating:

Mounting System:

Power Connection:

Signal Connection:

Field Angle:

Beam angle:

Electrical specifications:

Light Source:

Power:

Power consumption:

Power Link:

Dimensions:

Fixture Size:

Fixture Weight:

Packaged Size:

Packaged Weight:

Die-Cast Aluminum

IP-65

Yoke with three hole positions, optional quick release

Input: Seetronics SAC3FX

Output: Seetronics SAC3MPX

Cable Input: Nema 5-15 to SAC3FX-67

(cable included)

Input: Seetronics J5F2C-W-B-67 5-pin XLR

Output: Seetronics K5F2C-W-B-67 5-pin XLR

71° , 113°

21° , 51°

48 X 8W RGBW

Electronic 100-240V AC 50/60 Hs

386 Watts 2.62 Amps @ 110V

5 Units @ 110V

13.5” X 5.4” X 8.5”

34.29 X 13.71 X 21.59 cm

15 lb | 6.80 kg

24” X 9” X 19”

60.96 X 22.86 x 48.26 cm

18.5 lb | 8.39 kg

Control system:

Protocol:

Channel Modes:

RDM parameters:

Operating mode:

Housing:

Outdoor Rating:

Mounting System:

Power Connection:

Cable Input:

Signal Connection:

Beam angle:

Field angle:

DMX 512, RDM

11 Modes of Operation

1 Channel Mode: Dimmer

4 Channel Mode: Dimmer, White Fine, Kelvin, G-shift

4b Channel Mode: R, G, B, W

8 Channel Mode: R, RF, G, GF, B, BF, W, WF

11 Channel Mode: Dimmer, Shutter, R, G, B, W, Color Macro, Kelvin, Macros, Macro Speed, Fade

18 Channel Mode: Dimmer, Fine Dimmer, Shutter, R, RF, G, GF, B, BF, White, White Fine, Color Macro, Kelvin, Dimmer Response, Macros, Macro Speed, Fade

22 Channel Mode: Dimmer, Fine Dimmer, Shutter, Lee Filter, CTO, Dimmer Speed, LED Dimmer

24 Channel Mode: RGBW x6

34 Channel Mode: Dimmer, Fine Dimmer, Shutter, RGBW x6, Dimmer Speed, Lee Filter, CTO, Macros, Macro Speed, Fade, Function Set

48 Channel Mode: Color Macros, Macros, Macro Speed Kelvin, Dimmer Response, Fade, Control, RGBW x12

58 Channel Mode: Dimmer, Dimmer Fine, Shutter, Color Macros, Macros, Macro Speed Kelvin, Dimmer Response, Fade, Control, RGBW x12

Fixture Label

DMX, Master/Remote, Auto, and Manual Settings

Via Display
